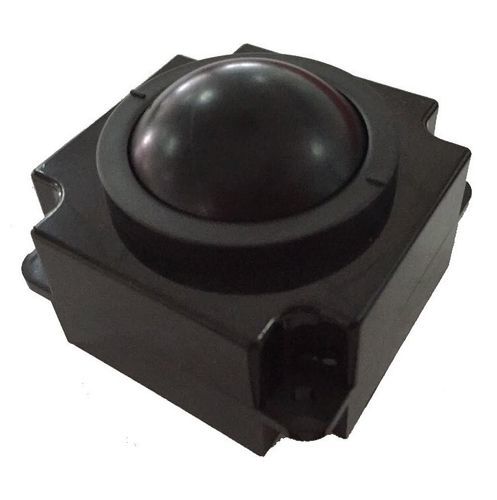

Medical device trackball P-B50TB

Product overview:
The P-B50TB is a 50 mm wired trackball engineered for medical and industrial environments. It combines ESD protection, an IP65-sealed housing and a hardened ABS ball and bezel to ensure reliable operation in demanding conditions. Available with USB or PS/2 interface and optional optical trackball module.

Key specifications:

• Model: P-B50TB
• Type: Wired mechanical trackball
• Trackball diameter: 50 mm
• Interface: USB and PS/2
• Resolution: configurable (mechanical options 400 / 800 DPI)
• Hand orientation: ambidextrous
• Material: hardened ABS
• Protection: IP65 (static)
• ESD: yes
• Certifications: CE, FCC, ROHS
• MOQ: 1 pc — Supply ability: 3000 pcs/month — Delivery: 1–2 weeks

Highlights / Features:

• IP65 sealed 50 mm trackball module designed for medical and industrial usage
• Static ESD protection suitable for sensitive environments
• Hardened ABS ball and bezel for enhanced wear resistance
• Resolution options and adjustable sensitivity (mechanical 400/800 DPI)
• Available with USB or PS/2 cable; optical trackball module optional
• Custom colours available on request
• CE, FCC and ROHS certified

Electronic features:

• Protection level: IP65 (static)
• Power supply: 5 V DC ±10%
• EMC standard: EN55022(B)
• Resolution: 400 / 800 DPI (mechanical); optical module optional
• Power consumption: 89 mA (typ.)
