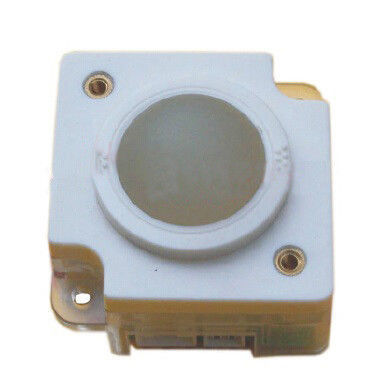

Medical device trackball P-25-OTB

for multiparametric monitorsretroilluminated

Product Details
Model: P-25-OTB
Place of origin: Made in China
Brand: OEM
Certifications: CE, FCC, ROHS
Intended use: medical and healthcare equipment

Key Specifications

• Ball diameter: 25 mm (other sizes available)
• Resolution: 400–800 DPI (adjustable option 400–1200 DPI)
• Interface: USB (also available PS/2 or custom)
• Protection level: IP65 (static)
• ESD protection: integrated
• Mounting: with mounting holes
• Plug & Play: yes

Key Features

• 25 mm roller trackball module designed for integration into medical/healthcare mice and devices
• Semi-transparent ball; optional backlit version for low-light environments
• USB interface as standard; PS/2 and other cable options available
• Integrated ESD protection for improved device safety in clinical environments
• Sealed construction (IP65 static) for protection against dust and splashes

Electrical & EMC
Power supply: 5 V DC ±10%
Power consumption: 1.00 W (dynamic); 0.2 W (static)
EMC standard: EN55022(B)


Working Environment
Operating temperature: -10 °C to +60 °C
Storage temperature: -20 °C to +70 °C
Operating humidity: 30–90% RH
Atmospheric pressure: 60–106 kPa
Reliability: MTBF > 20,000 h; MTTR < 30 min

Applications

• Medical equipment (patient monitoring, diagnostic consoles, clinical workstations)
• Music and audio equipment
• Other industrial and military applications

Packaging & Logistics

• Minimum order quantity: 1 pc
• Price: negotiable
• Packaging: inner box plus outer carton
• Delivery time: 1–2 weeks
• Payment terms: TT, PayPal, Western Union
• Supply ability: 3000 pcs per month

Ordering & Options

• Colors: semi-transparent, black (backlit option available)
• Ball weight: customizable on request
• Resolution and sensitivity: fixed 400–800 DPI or adjustable 400–1200 DPI
• Interface options: USB, PS/2 or custom interfaces
• Custom mechanical or cable configurations available for OEM integration
