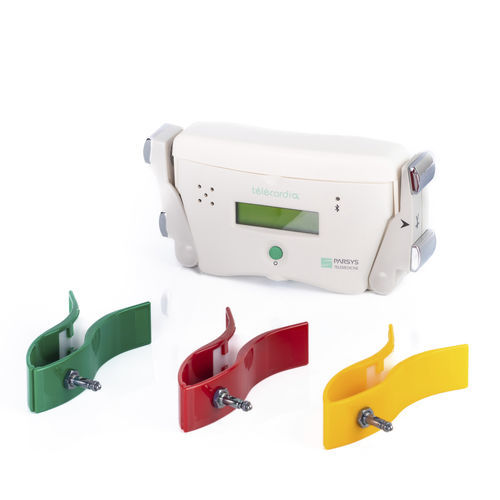

12-channel electrocardiograph Télécardia
digitalwireless

12-channel electrocardiograph
12-channel electrocardiograph
12-channel electrocardiograph
12-channel electrocardiograph
12-channel electrocardiograph
12-channel electrocardiograph
12-channel electrocardiograph
Add to favorites
Compare this product

Characteristics

Number of channels
12-channel
Technology
digital
Options
wireless

Description

Telecardia : Making ECG as simple as taking blood pressure This device, patented by Parsys, allows healthcare professionals to quickly acquire and transmit a patient’s electrocardiogram without the constraints of a conventional device. Telecardia is portable, compact and lightweight, with fixed thoracic electrodes, without consumables. RAPIDITY OF TRANSMISSION Acquisition in 15 seconds, automatic transmission COMFORT IN USE Digital display, long life Lithium battery EASE OF USE No disposable electrodes, little wired connectivity General characteristics Type12-channel Electrocardiograph (ECG) device for temporary use ClassMA OperationNo disposable électrodes TransmissionBluetooth® Power supplyMedical power adapter 5V DC/ 1.3A 230V/ 50-60 Hz/Class II certified EN60601-1 BatteryInternai Lithium Polymer rechargeable battery-3.7V/3000 mAh AutonomyMore than 100 ECG traces Charging baseDC 5V/1.1A Recharge time3 hours Use+10°C/ +35°C Storage-10°C/+50°C Certification CE 0459 Mechanical characteristics Dimensions210 mm x 100 mm x 50 mm Weight500g Protection ratingIP20 Fixed électrodesOn housing and déployable arms: VN-V1-V2-V3-V4-V5-V6 Wired électrodesPeripheral cord for limb forceps: R, L and F Electrical characteristics (ECG) 12-lead restitution D1, D2, D3, Avr, Avl, Avf, V1, V2, V3, V4, V5, V6 12-lead restitution Measurement with internai électrodes, 9 simultaneous dérivations Input impédance Bandwidth Linearity of measurement Sensitivity of measurement Sampling frequency D1, D2, D3, Avr, Avl, Avf, V1, V2, V3, V4, V5, V6 R, L, F, V1 - V2 - V3 - V4 - V5 - V6 compared to VN 10 Mn 0.05 Hz to 150Hz at-3db 0.01% 2264 pt/mV 512 pt/s
