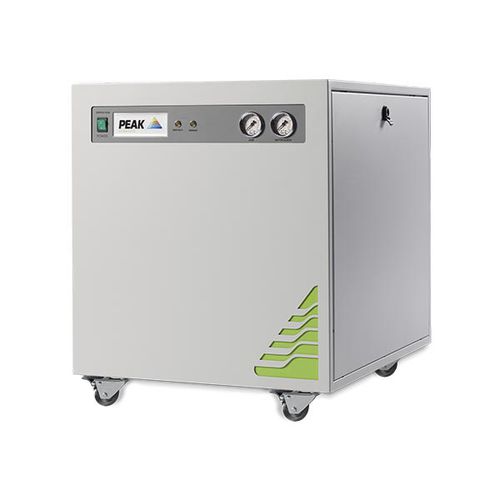

Nitrogen generator Genius 1025
airfor LC/MScompact

nitrogen generator
nitrogen generator
Add to favorites
Compare this product


Characteristics

Gas type
nitrogen, air
Applications
for LC/MS
Configuration
compact
Technology
membrane
Output

15 l/min, 35 l/min (4 us gal/min)

Description

Producing a single output of LC-MS grade nitrogen (up to 15 L/min) and air (up to 35 L/min) specifically to meet the requirements of PerkinElmer’s QSight Triple Quad 110 and 210 LC-MS/MS systems, the Genius 1025 has been designed using membrane technology to produce LC-MS grade purity and an internal air dryer to produce a clean supply of dry air. The Genius 10 series models are compressor-based systems Peak manufacture utilizing membrane technology to ensure high performance and supply of analytical instrument grade nitrogen. Features Self-contained solution with integrated compressors, no need for an external air supply Highly economical source of nitrogen/dry air with low lifetime running costs Easy to use, gas at the push of a button Wheels make it easy to manoeuvre generator around the lab 12 month comprehensive on-site warranty Gas Gas Type: Nitrogen Max Gas Flow: 15L/min Max Output Pressure: 80psi/5.5bar Gas Type: Air Max Gas Flow: 35L/min Max Output Pressure: 110psi/7.6bar Site & Installation Gas Outlets Fitting: 2 x 1/4" BSPP Start Up Time: 30 minutes Power Consumption: <1265 VA Voltage: 230 ± 10% V Frequency: 50 / 60 Hz Current: 7 A Heat output: 3,925 BTU Max Operating Temp: 30°C / 86°F Particles: <0.01µm Phthalates: none Suspended Liquids: none Accreditations: CSA, FCC, CE Dimensions & weight Size (HxWxD) mm: 713 x 600 x 750 mm Size (HxWxD) Inches: 28.1 x 23.6 x 29.5 inches Generator Weight: 108kg / 237.6lbs Applications ) 1 x PerkinElmer QSight Triple Quad 110 ) 1 x PerkinElmer QSight Triple Quad 210
