temperature sensor / pressure / calibration / for the medical industry
PBM210

Add to MyMedicalExpo favorites
Compare this product Don’t compare this product

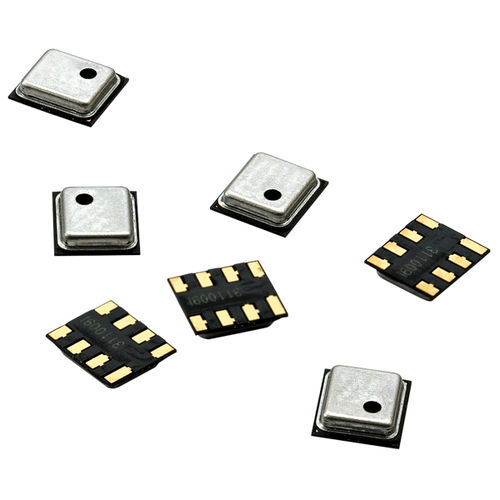

temperature sensor / pressure / calibration / for the medical industry temperature sensor / pressure / calibration / for the medical industry - PBM210
{{requestButtons}}

Characteristics

  • Evaluation type:

    temperature, pressure, calibration

  • Applications:

    for the medical industry

Description

Measuring range
0.3 to 1.1...2 bar

Output type
Digital

Temp. range [C
-40 to +85

Mounting style
SMD

Supplier
Pewatron

Pressure type
Absolute

Supply voltage [V]
1.7...5.5

Temperature compensation
Yes

Pressure port
Unported

Product description
New generation of high resolution digital barometer with 24bits sigma-delta ADC, OTP memory for calibration data, and serial interface circuits.

Features
 Supply voltage:
1.7 to 5.5V(VDD)
1.2 to 5.5V(VDDIO)
 300 to 1100 hPa pressure range
 8cm altitude resolution (RMS)
 2.2ms fastest conversion time
 Standby current <0.1μA
 I2C and SPI interfaces
 Calibrated and temperature compensated

Application Examples
 Indoor and outdoor navigation
 Weather forecast device
 Altimeter and barometer for portable device
 Bike compute

Descriptions
Part No. Pressure
type
Pressure
range
Digital
interface
Package Note
Absolute 300-1100hPa SPI / I
2C
LGA Tape & Reel
PBM210 series
The PBM210 is a new generation of high resolution digital barometer. The PBM210 is a
digital pressure sensor which consists of a MEMS piezoresistive pressure sensor and a signal
conditioning ASIC. The ASIC include a 24bits sigma-delta ADC, OTP memory for calibration data, and serial interface circuits. The PBM210 could provide both I2C and SPI interface to communicate with microcontroller. Pressure calibrated and temperature compensated were key features of the PBM210. The data stored in OTP memory could be used to calibrate the PBM210. The calibration procedure should be implemented by an external microprocessor. The PBM210 is low power and supply voltage designed and suitable for portable devices or battery-supplied ones.
