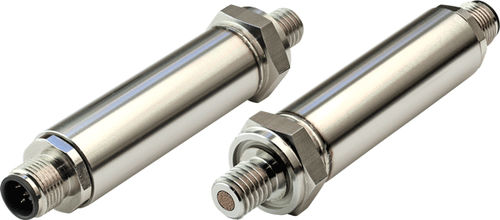

Pressure transmitter PIRANI 80A
TEMP

pressure transmitter
pressure transmitter
Add to favorites
Compare this product


Characteristics

Type
pressure, TEMP

Description

Measuring range 0 to 5 mbar...2 ba Supply voltage 8...36 VDC Accuracy [ 0.5 FS Supplier Pewatron Pressure type Gauge, vacuum, absolute Output signal 4...20 mA; 0...10 VDC, 0...5 VDC Temp. range [°C] -25 to 85 Product description PAMS47xx is a series of miniaturized pressure transmitters suitable for industrial applications and high precision measurements. PAMS47xx comes in a robust plastic package and is ready to use. Pressure is either applied via two barbed side ports for differential (relative) or bidirectional differential pressure transmitter types or via a single port for absolute or barometric types. The electrical connection is realized with an M5 circular sensor connector. PAMS47xx’s package is dust- and water-tight conforming to IP67. FEATURES  Calibrated and temperature compensated  pressure sensor with two-wire 4 .. 20 mA current loop output  Differential / gage, bidirectional differential, absolute and barometric versions  Wide variety of pressure ranges: 5 mbar up to 2 bar  Piezoresistive sensing element  High precision digital signal conditioning  High accuracy at room temperature  Low overall error within a temperature range of -25 .. +85°C  Supply voltage range: 8 .. 36 V  Current limitation  Protected against reverse polarity  Compact and robust package  Dust- and water-tight (IP67)  M5 circular sensor connector  Ready to use, simple and quick installation  RoHS and REACH compliant

Catalogs

No catalogs are available for this product.

See all of Pewatron AG‘s catalogs
