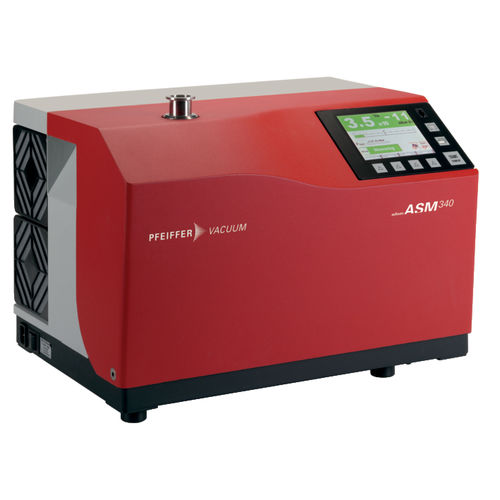

Laboratory leak tester ASM 340

compactdigital

Leak detector with rotary vane pump, 15 m3/h backing pump capacity Product description Fast response time thanks to the largest primary pump (RVP) in its class Ability to detect large leaks between 100hPa and the inlet test pressure Easy operation, intuitive menu and large color touch screen Various languages and operating voltages available for global use Available with interface board for automation through an external system (PC or PLC) Complete range of accessories for even more convenient leak detection ASM 340, 200/240 V, European Mains Cable Order number: JSVA00A0MH9A Powerful rotary vane pump with 15 m3/h backing pump capacity 2.5 l/s helium pumping speed 200/240 V operating voltage, european power cable Customizable and detachable operator interface Integrated SD card for data processing Wired or wireless remote control and sniffer probes available as accessories Technical data Backing pump capacity 15 m³/h | 8.83 cfm | 250 l/min Detectable gases 4He, 3He, H2 Dimensions (L x W x H) 547 x 375 x 393 mm | 21.54 x 14.76 x 15.47 inch Flange (in) DN 25 ISO-KF I/O interfaces Basic 15 pins I/O Minimum detectable leak rate for helium (sniffing leak detection) 5 · 10-10 Pa m3/s | 3.75 · 10-9 Torr l/s | 5 · 10-9 mbar l/s Minimum detectable leak rate for helium (vacuum leak detection) 5 · 10-13 Pa m³/s Noise level 52 dB(A) Operating temperature (hard vacuum test) 0 – 45 °C Operating temperature (sniffing test) 0 – 35 °C Power consumption max. 850 W Protection category IP20 Pumping speed for He 2.5 l/s Sound pressure level 52 dB(A) Start-up time (20°C) without calibration ~ 3 min Supply 200 – 240 V, 50/60 Hz
