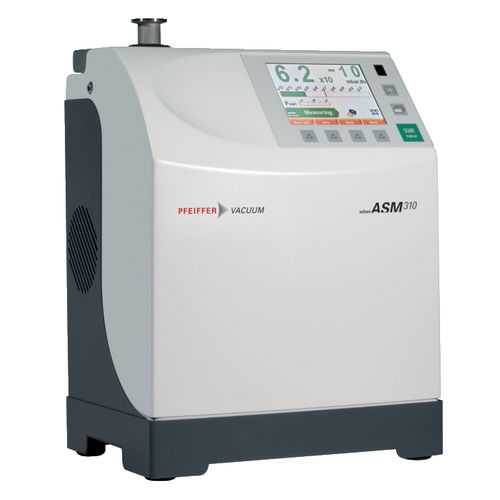

Laboratory leak tester ASM 310

compactdigital

Superior performance, light weight and universal voltage enables the ASM 310 to be easily operated at any location. Product description Oil free pumping system, roughing capacity 1.7 m3/h Ultralight, only 21 kg (46 lbs) and easy to move Smart design with retractable handle Can be operated in any position: horizontally or vertically Detachable control panel, with magnets enabling it to be positionned on a metallic support SD card storage capabilities (bitmap or text files) for an easy post-processing of leak test results Large bright color touchscreen with graphics functionality Intuitive and customizable menu ASM 310, universal voltage Order number: BSAA0000MM9A Oil free pumping system, roughing capacity 1.7 m3/h Ultralight, only 21 kg (46 lbs) and easy to move Large bright color touchscreen with graphics functionality Intuitive and customizable menu Integrated SD memory card for recording and downloading capacities Technical data Backing pump with oil free backing pump Backing pump capacity 1.7 m³/h | 1 cfm | 28.33 l/min Detectable gases 4He, 3He, H2 Dimensions (L x W x H) 350 x 254 x 415 mm | 13.78 x 10 x 16.34 inch Flange (in) DN 25 ISO-KF I/O interfaces Basic 15 pins I/O Minimum detectable leak rate for helium (sniffing leak detection) 1 · 10-8 Pa m3/s | 7.5 · 10-8 Torr l/s | 1 · 10-7 mbar l/s Minimum detectable leak rate for helium (vacuum leak detection) 5 · 10-13 Pa m³/s Noise level < 45 dB(A) Power consumption max. 300 W Pumping speed for He 1.1 l/s Response time (Sniffing leak detection) < 1 s Sound pressure level <45 dB(A) Start-up time (20°C) with calibration < 3.5 min
