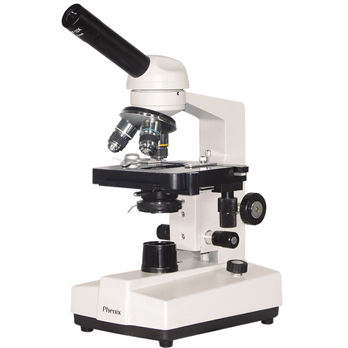

Optical microscope XSP-3 series

laboratorybiologicalmedical

XSP-30 series biological microscope adopts modular design and flexible combination. The design of the optical system is excellent, with coated optical parts, clear image, and sharp image quality. All the main components of this instrument are made of metal parts and are precisely processed. It is a very cost-effective microscope. The instrument is suitable for use in middle schools, universities, colleges, medical and health institutions, inspection and quarantine and clinical inspection. ● Wide-angle eyepiece -WF10X/18mm, Huygens H16X/10mm ● Double-layer mechanical mobile stage -Size 115mmX125mm, movement range 76mmX52mm ● Separate coarse and fine focusing knob -Coarse adjustment stroke: 20mm, fine movement accuracy: 1.3mm ● Illumination system -LED 1W, rechargeable, brightness adjustable ● Power supply -External switching power supply (adapter) AC100V-240V, DC5V/2A Observation tube -Monocular tube, 30°inclined, 360° rotatable -Monocular TV tube, 45° inclined, 360° rotatable -Compensation binocular tube, 30°inclined, interpupillary distance: 48-75mm Eyepiece -WF10X/18mm, H16X/10mm Nosepiece -Three Holes Nosepiece Stage -Double-layer mechanical stage, area: 115X125mm, moving range 76x52mm Focusing mechanism -Different axis coarse and fine adjustment, coarse focusing range 20mm, fine focusing graduation: 1.3mm Condenser -Abbe condenser, NA=1.25, iris diaphragm, lever lift up and down Bottom light -LED 1W, rechargeable, brightness adjustable Power supply -External switch power supply (adapter), input AC100-240V, output DC 5V/2A
