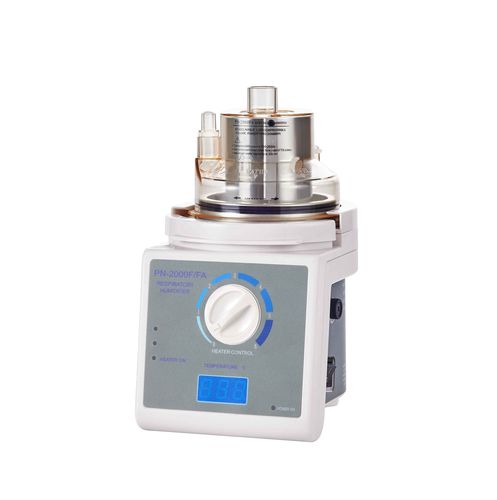

Pigeon Medical Respiratory Humidifier is a device designed to provide artifically warmed and humidified conditioning respiratory gas to patient in require positive pressure breathing assistance or mechanical ventilation. In case your breathing circuit does not include heated wire, Pigeon Medical Respiratory Humidifier PN-2000FA will be your best choice with the highest cost performance. The temperature of heated plate can be simply controlled within 38oC to 70oC in 6gears. The device also includes temperature sensor and the real-time temperature will be shown on its built-in digital display.
Working Principle of PN-2000F/FA Respiratory Humidifier
Cold and dry air travelled from the respiratory gas supply via the breathing circuit, en route passing Pigeon Medical respiratory humidifier chamber, meanwhile absorbing the heat and water vapor without direct contact with water.
Features of PN-2000F/FA Respiratory Humidifier
Simple temperature control setting from level 0-6, which heated plate from 38℃ to 70℃
Match with various ventilators
Provide high quality aluminium clamp and slot plate for the blender to safely hang on the trolley
Specification of PN-2000F/FA Respiratory Humidifier
Model - PN-2000F/PN-2000FA
Power Source - AC 220V, 50-60Hz (Optional: AC 110V, 50-60Hz)
Heated Plate - 150W
Thermal Cut Off - 95±6℃
Display - Three digit, 0.56 inch, 7 segment Led
Temperature Monitoring - 0-75℃
Max-temperature of Heated Plate - 85℃
Heated Wire - /
Power Rate - 150W
Alarm - No
Temperature Control Setting -
Heated Plate Temperature:
Level 0: 38℃
Level 1: 43℃
Level 2: 48℃
Level 3: 53℃
Level 4: 58℃
Level 5: 63℃
