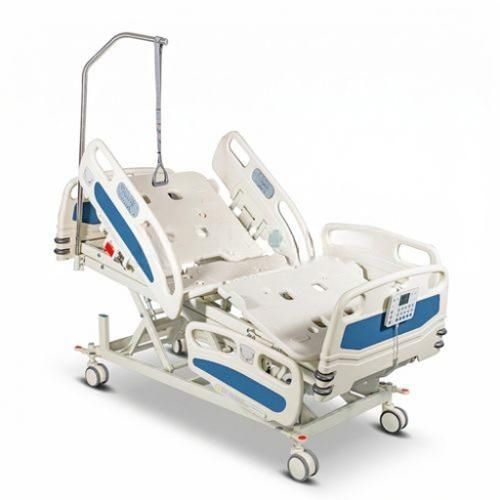

Intensive care bed DY5895EW

electricreclininginclinable

Short description
Model: DY5895 / DY5895W / DY5895EW
Bed dimensions: 2160 × 1030 mm (±3%)
Bed weight: 155–170 kg (with weighing system)
Maximum static load: 400 kg
Dynamic load: 250 kg

Electronic adjustment

• Backrest angle: 0°–78°
• Footrest angle: 0°–33°
• Trendelenburg: 0°–10°
• Reverse Trendelenburg: 0°–10°
• Height ranges: 450–850 mm (±3%); alternative range 580–970 mm (±3%)

Physical characteristics
Frame: cold-rolled tube, 1.5 mm thickness, powdered coating.
4-section PP mattress-support board: waterproof, rustproof, tool-free access for cleaning and maintenance.
Bedboard extended by 15 mm.

Specifications and functions

• Electric motors for adjustment of backrest, footrest, height, Trendelenburg and reverse Trendelenburg.
• Lockable and detachable PP headboards.
• Crashproof bump design for protection during transport.
• Easy-clean, lockable side rails with integrated angle indicator for backrest and Trendelenburg positions.
• Two-way regression function to reduce sacral pressure and patient displacement.
• Drainage bag hooks on both sides.
• IV pole sockets at four corners.
• Four 360° swivel central-lock castors, diameter 125 mm.
• Equipped with nurse control unit and hand-held patient controller.
• Integrated control panels and central wheel brake system.
• Mattress options: foam or anti-decubitus types.
• Accessories: monkey bar, nurse controller, PX20J side rail option, PX107 head & foot board option.
• Conformity: CE 42/93/EEC, ISO 13485.

Weighing system (optional / integrated accessory)

• Optional integrated weighing system: display characteristics, weighing precision, positioning, CPR function, night light, alarm system and related features.

Technical specifications

• Commercial model name: DY5895EW (variants: DY5895, DY5895W)
• Bed dimensions: 2160 × 1030 mm (±3%)
• Bed weight (with weighing system): 155–170 kg
• Maximum static load: 400 kg
• Dynamic load: 250 kg
• Backrest angle: 0°–78°
• Footrest angle: 0°–33°
• Trendelenburg / Reverse Trendelenburg: 0°–10°
• Height ranges: 450–850 mm (±3%); alternative 580–970 mm (±3%)
• Frame material: cold-rolled tube, 1.5 mm, powdered coating
• Mattress support: 4-section PP mattress-support board (waterproof, rustproof)
• Castors: 4 × 360° swivel, central lockable; diameter 125 mm
• Controls: nurse control unit and hand-held patient controller; integrated control panels
• Optional weighing system features: display, precision scale, CPR, night light, alarm
• Certifications: CE 42/93/EEC, ISO 13485
