Intensive care bed DY5895EW

electricheight-adjustableTrendelenburg

Product

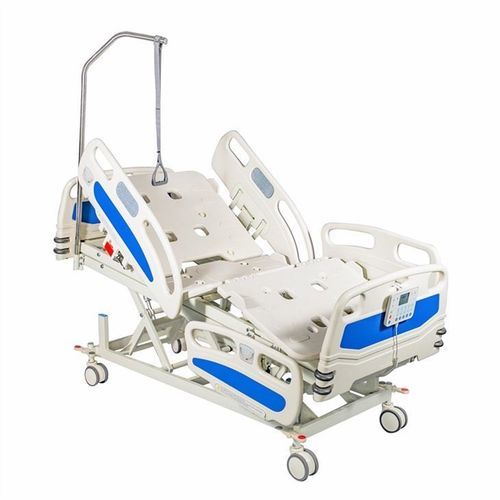

Electric 5-function intensive care bed with siderail control panel and optional integrated weighing scale system, model DY5895EW.

Short description

• Bed dimensions: 2100 × 1000 mm (±3%).
• Bed weight: 155–170 kg (depending on configuration; heavier with weighing system).
• Maximum static load: 400 kg; dynamic load: 200 kg.
• Five electric adjustments: backrest, footrest, height, Trendelenburg and reverse Trendelenburg.

Specifications and functions (angles / height)
Backrest angle: 0°–75°
Footrest angle: 0°–35°
Trendelenburg / Reverse Trendelenburg: 0°–12°
Height (standard): 450–850 mm (±3%)
Height (with weighing system): 550–950 mm (±3%)

Construction and physical characteristics

• Frame: 30 × 60 mm cold-rolled tube with powder coating.
• Mattress support: 4-section PP board, waterproof and corrosion-resistant; removable for maintenance without tools.
• Head/foot boards: lockable, detachable PP panels with bumpers; standard lamination color: light blue.
• Castors: four 360° swivel wheels with central locking, Ø 150 mm; protective plastic corner bumpers.

Features

• High-quality electronic motors for all adjustments (backrest, footrest, height, Trendelenburg and reverse Trendelenburg).
• Siderail-mounted control panel plus external wired nurse control and patient control; remote control optional.
• Lockable, easily cleanable side rails with inserted angle indicator for backrest and Trendelenburg positions; lowered rails sit below mattress level.
• Crashproof bumpers to protect the bed during transport.
• Electrical CPR (emergency) button for rapid flattening.
• IV pole sockets at four corners and drainage bag hooks on both sides.

Technical specifications

• Model: DY5895EW
• Dimensions: 2100 × 1000 mm (±3%)
• Bed weight: 155–170 kg (with weighing system as option)
• Maximum static load: 400 kg
• Dynamic load: 200 kg
• Adjustment ranges: backrest 0°–75°, footrest 0°–35°, Trendelenburg/reverse 0°–12°
• Height ranges: 450–850 mm (standard); 550–950 mm (with weighing system)
• Frame: 30 × 60 mm powder-coated cold-rolled tube
• Castors: 4 × Ø 150 mm, 360° swivel, central lock
• Standards: CE 42/93/EEC, ISO 13485

Notes / options
The integrated weighing system is optional and affects bed weight and available height range. Remote control and accessory configurations are available per customer requirements.
