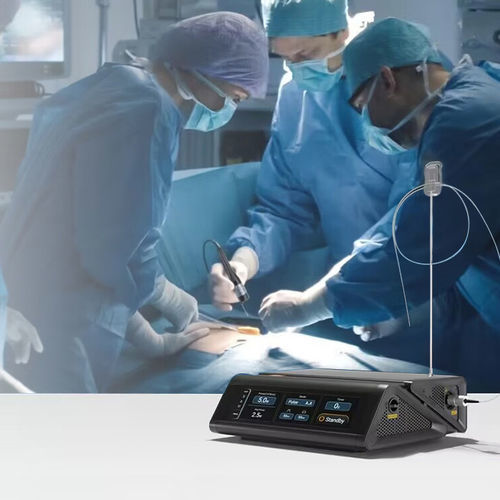

Dermatology laser MZ

surgicalvaricose vein treatmentaesthetic medicine

Overview
MZ Surgical Laser System by Pioon integrates a built-in laser power meter with automatic calibration, a 520 nm green aiming beam, an 8.8-inch Retina HD ultra-wide display and SmartOS 2.0 (MZ Version) to provide precise control of treatment parameters and reliable documentation for clinical workflows.

Highlights

• Built-in laser power meter with automatic calibration to monitor and correct output power in real time.
• 520 nm green aiming beam for enhanced target localization and reduced operator fatigue compared with red aiming lights.
• SMA905 connector with NFC for certified fiber identification and usage logging (privacy-protected, user-visible).
• 8.8-inch ultra-wide Retina HD level display for clear visualization of parameters and function names from a distance.
• Classic black ABS+PC enclosure with integrated wedge design and built-in adapter for direct power connection.
• Supports multiple wavelength and power configurations; example standard: 980 nm 30 W + 1470 nm 15 W.

Hardware Performance

• Laser power meter: displays actual output power in real time and performs automatic calibration when deviation is detected to ensure treatment accuracy.
• Green aiming beam (520 nm): improved human-eye visibility in varied backgrounds to assist precise fiber placement and reduce fatigue.
• SMA905 + NFC: fiber authentication and usage log recording; configurable visibility for distributors and operators.
• Enclosure & connectivity: black ABS+PC shell, integrated wedge form factor, built-in adapter and direct AC connection for clinical settings.

Software Performance

• SmartOS 2.0 (MZ Version) with a simplified UI focusing on treatment parameters and function names for stable operation.
• Display layout optimized for distance readability to support professional workflows and rapid parameter checks.

Wavelengths & Power

• Option 1: 1470 nm — 20 W
• Option 2: 1940 nm — 10 W
• Option 3: 980 nm + 1470 nm (simultaneous dual-wavelength emission supported) — 30 W + 15 W
• Option 4: 1210 nm + 1470 nm — 10 W + 10 W

Technical Specification

• Screen size: 8.8 inches
• Screen resolution: Retina HD level
• Dimensions: 290 mm x 280 mm x 110 mm
• Shell color: Classic Black
• Storage: 32 GB (≈1,000,000 protocols + 500 HD treatment tutorials)
• Fiber connector: SMA905 + NFC
• Operating system: SmartOS 2.0 (MZ Version)

Standards Compliance

• IEC 60601-1:2020
• ISO 14971:2019
• IEC 60601-1-2:2020
• ISO 24971:2020
• IEC 60601-2-22:2019
• ISO 10993-1:2018
• IEC 60825-1:2014
• ISO 15223-1:2021
• IEC 62304:2015
• IEC 62366-1:2020

Instruments, Fibers & Accessories (selected)

• Handpieces: proctology, surgical zoom, focusing, general surgery, ENT, lipo/lipolysis, gynecology — designed for clinical indications and compatible with SMA905 where applicable.
• Fibers & tips: polyimide-coated fibers (high heat resistance), conical fibers (hemorrhoid probes), radial fibers (endovenous standard), Laserlift tips (200–1000 μm), bare fibers (200/300/400 μm).
• Accessories: surgical laser protection goggles (covering 980–2700 nm), multilingual manual, packing box, bare fiber holder, medical-grade plugs, Bluetooth/wired medical foot pedals (optional).

Applications

• Vascular / EVLT: dual-wavelength (1470 nm + 980 nm) combinations optimized for localized heating, hemostasis and reduced collateral tissue damage.
• Aesthetic surgery / facial contouring / lipolysis: calibrated power and green aiming beam for precise fiber positioning and controlled energy delivery.
• Proctology: 1470 nm options for coagulation, cutting and vascular treatment of hemorrhoids, anal fistulas and related procedures.

Model & specifications

• Model name: MZ Surgical Laser System
• Brand: Pioon
• Standard configuration example: 980 nm 30 W + 1470 nm 15 W (supports multiple single and dual-wavelength combinations)
• Key hardware features: built-in laser power meter with automatic calibration; 520 nm green aiming beam; SMA905 + NFC connector; 8.8-inch Retina HD display; classic black ABS+PC shell.
• Compliance: complies with listed IEC and ISO standards.
