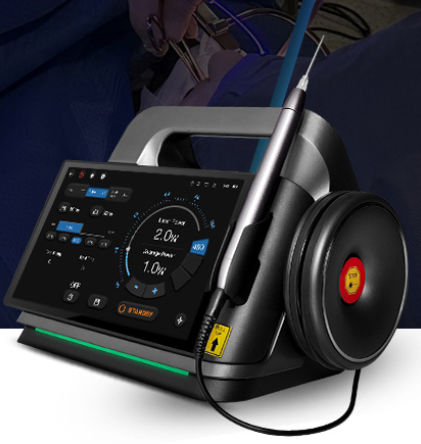

ENT surgery laser S1-C10

KTPdiodeCO2

Overview
The S1-C10 ENT blue diode laser delivers a 450 nm wavelength designed for precise ablation, vaporization and coagulation in ENT procedures. The system integrates intuitive software with preset clinical programs for otology, rhinology and laryngology, enabling minimally invasive laser therapies and efficient outpatient workflows.

Advantage over CO2 and KTP
The 450 nm diode laser combines benefits of CO2 and KTP technologies: effective photocoagulation and strong hemoglobin absorption. It supports both non-contact and contact (fiber) modes, enabling precise cutting and gentle tissue treatment at lower power levels, reducing collateral thermal damage.

Optimal Clinical Configuration
The blue 450 nm wavelength provides high hemoglobin absorption and a focused spot profile for controlled cutting, reliable vessel coagulation and accurate tissue ablation. Reduced light scatter and limited thermal conductivity enable localized interventions with improved margin control and minimal surrounding-tissue impact.

Typical Applications

• Fast and gentle outpatient ENT treatments
• Improved procedural sterility and reduced contamination risk
• Easy operation with preset programs; compatible with endoscopic introduction
• Minimally invasive procedures using flexible fiber optics
• Minimal thermal damage for clear tissue margins
• Precise incision, excision and vaporization with microvascular hemostasis

Applications of ENT Surgery

• Otology: Stapedotomy; Cholesteatoma
• Rhinology: Scar band treatment; Turbinate reduction
• Laryngology: Papilloma; Capillary ectasia; Cyst; Synechia; Leukoplakia
• Pharyngology: Tonsil resection

Included clinical accessories (examples)

• ENT handpiece: 7-piece cannula set (10 cm–20 cm), supports 200 μm–600 μm fibers, fully autoclavable and ergonomic
• Polyimide-coated fiber: high-temperature resistance (up to 300 °C) for ENT and clinical use
• Bare fibers: 200 μm / 300 μm / 400 μm (lengths per supplier)
• ENT workstation and examination units to integrate clinical workflows
• Laser protective eyewear, medical-grade adapters, plugs and foot pedals (optional)

Technical specifications

• Wavelength: 450 nm (±20 nm)
• Max power: 10 W (recommended balanced configuration)
• Display / Connection: 7-inch Retina touch display, PPI > 340
• Aiming beam: 650 nm; < 5 mW, adjustable intensity
• Fiber connection: SMA905 direct connect; compatible with medical fibers ≥ 200 μm
• Operating modes: Continuous Wave (CW) / Pulsed
• Battery capacity: 2850 mAh
• Weight (without case): ≤ 2 kg; aluminum-magnesium alloy chassis
• Dimensions (L × W × H): 26 cm × 12.5 cm × 20 cm
• Cooling: Dual-fan plus electronic cooling; multi-channel copper tubing
• Standards compliance: IEC 60601-1:2020; IEC 60601-1-2:2020; IEC 60601-2-22:2019; IEC 60825-1:2014; IEC 62304:2015; IEC 62366-1:2020; ISO 14971:2019; ISO 24971:2020; ISO 10993-1:2018; ISO 15223-1:2021
