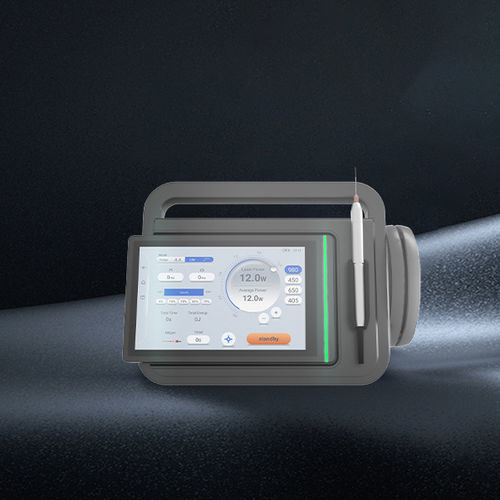

Dermatology laser UTU+

vascular lesion treatmentdentalENT surgery

Product Overview
The UTU+ Multi-Wavelength Medical Laser System is a diode laser platform configured to support multiple clinical specialties with preconfigured expert protocols. The device integrates four wavelengths into one unit to treat soft-tissue, vascular, dental, ENT and therapeutic indications. The system includes in-app unlockable presets and supports accessory modules and instruments for procedure-specific workflows.

2nd Generation 4-Wavelength System (450nm + 650nm + 810nm + 1064nm)

• 450nm (Blue Light): High absorption in melanin and hemoglobin; indicated for dental cutting, teeth whitening and superficial pigmentation or vascular lesions.
• 650nm (Red Light): Penetrates soft tissues for biostimulation, wound healing support and inflammation reduction.
• 810nm (Near-Infrared): Deeper penetration with moderate water and hemoglobin absorption; suitable for soft tissue surgery, vascular treatment and hair reduction procedures.
• 1064nm (Infrared): Deep tissue penetration with lower melanin absorption; used for deeper therapeutic and surgical applications.

Clinical Applications
UTU+ ships with a library of clinical protocols and is configured to cover multiple domains through selectable presets.

• Dental
• Aesthetics
• Physiotherapy / Laser Therapy
• Podiatry
• ENT (Ear, Nose & Throat)
• Proctology

System Capabilities
A single UTU+ unit replaces multiple single-wavelength devices by integrating four wavelengths into one platform. The system includes an extensive protocol library (187 protocols documented) and enables additional presets via in-app activation codes. Integrated thermal sensing and monitoring allow temperature tracking of the treatment area with automatic alarms when preset thresholds are exceeded to support procedural safety.

Thermal Imaging and Safety
UTU+ pairs with thermal sensing eyewear and offers monitor connectivity to display and record maximum treatment-area temperature. The system can trigger alarms if temperature values exceed configured safety limits to protect patient safety during emission.

Medical-Grade Instruments and Compatible Accessories (examples)
The platform is compatible with a range of handpieces, fibers and accessories to support procedure-specific workflows:

• Handpieces: Proctology Handpiece, Surgical Zoom Handpiece, Focusing Handpiece, Surgery Handpiece, ENT Handpiece, Lipo Handpiece Pro, Lipolysis Handpiece.
• Fibers & Tips: Polyimide-coated Fiber, Conical Fiber, Radial Fiber, Laserlift Fiber Tips, Bare Fiber (various diameters and lengths).
• Accessories: Thermal Laser Safety Goggles (ThermaGuard), Professional Laser Safety Glasses, Multilingual Instruction Manual, Medical-grade Adapter, Packing Box, Bare Fiber Holder, Bluetooth / Medical-grade Foot Pedals (optional).

Technical Specifications

• Laser Wavelengths: 450nm: Pmax = 7W; 650nm: Pmax = 500mW; 810nm: Pmax = 15W; 1064nm: Pmax = 8W
• Display: 7-inch color touch-screen, 1920 x 1200 pixels
• Aiming Beam: 650nm ≤ 2mW, red indicator
• Operation Modes: Continuous Wave (CW) / Pulsed (Super-Pulsed)
• Weight (without case): 2.6 kg
