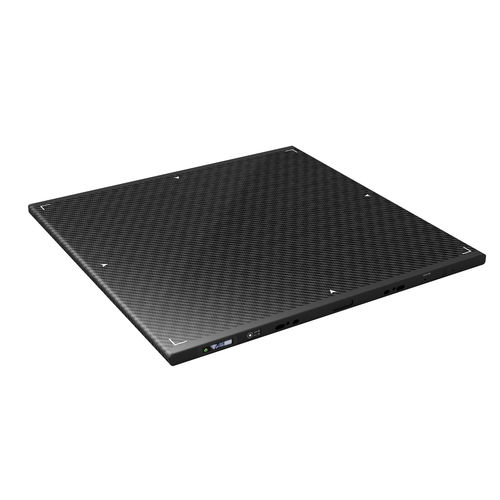

Multipurpose radiography flat panel detector PIXX 1717(M)

portablewireless17 x 17

High Image Quality High SNR and Low Noise at lower dose Data Loss Protection (Up to 100 images can be saved in detector) Faster Image Acquisition With largest image coverage 17”x17”, less than 3~5 second AED Plus: Second generation of continuous & accurate AED provides faster and efficient image acquisition Stand-alone Use Without workstation, detector works with x-ray source in portable & mobile environment One-piece Carbon Body Full carbon fiber housing allows light and durable detector OLED Display for Status OLED window helps user to check the status of detector Web Viewer for Mobile Phone: Instant Viewer from any personal mobile devices iOS or Windows mobile devices Specifications Application: General Radiography Sensor: a-Si TFT array Fiat Panel Detector Conversion Screen : Csl/GOS Pixel Size : 140um Sensor Pixel : 3,072 x 3,072 (9.4 M pixels) Image Data : 16 bit Trigger Mode : AED(Automatic Exposure Detection), Manual Trigger Calibration Mode : ACC(Auto Calibration Control), Manual Calibration Data Transfer Time : Less than 1 sec. Capture Cycle Time : 3~5sec.(Approx.) Wired Interface (Data Output) : Gigabit Ethernet Voltage : AC 100-240V, 50/60Hz I DC 22-24V, 5A Wireless Standard : IEEE 802.11ac Battery Type : Lithium Ion Polymer Battery Dimensions (W x L x T) : 460mm x 461mm x 15mm Environment Storage : -10#C ~60°C, 10%~90% RH (Non-condensing) Operation : 10°C ~35°C, 20%-75% RH (Non-condensing) Weight : 3.0kg including Battery Pack
