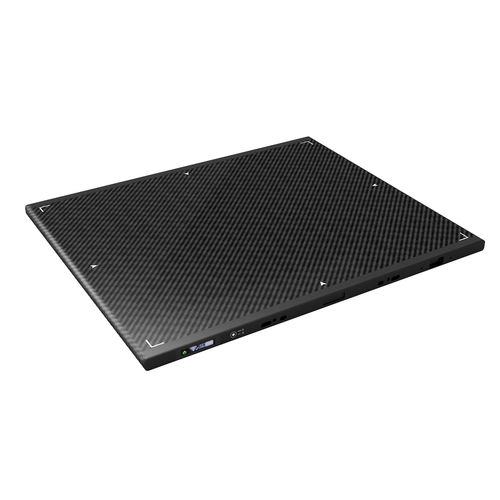

Multipurpose radiography flat panel detector PIXX 1417 wireless14 x 17

multipurpose radiography flat panel detector
multipurpose radiography flat panel detector
multipurpose radiography flat panel detector
multipurpose radiography flat panel detector
Add to favorites
Compare this product
indicative price

Characteristics

Applications
for multipurpose radiography
Options
wireless
Dimensions (inches)
14 x 17

Description

Features High Image Quality High X-ray Sensitivity High Speed Image Transmission Gigabit Wi-Fi IEEE 802.11ac Light & Slim Design Less than 3Kg with battery Internal Image Memory (Up to 150 images can be saved in detector) Web Viewer for Mobile Phone: Instant Viewer from any personal mobile devices iOS or Windows mobile devices Application Mobile System For Vehicle and Portable X-ray Systems Various applications (Wired and Wireless) Small Animals, Veterinary X-ray table for small animals Specifications Application General Radiography Sensor a-Si TFT array Fiat Panel Detector Conversion Screen Csl/GOS Active Area 14x17 inch (350 mm x 427.25 mm) Sensor Pixel 2,560 x 3,072 (9.4 M pixels) Pixel Size 140um Image Data 16 bit Trigger Mode AED(Automatic Exposure Detection), Manual Trigger Calibration Mode ACC(Auto Calibration Control), Manual Calibration Data Transfer Time Less than 1 sec. Capture Cycle Time 3~5sec.(Approx.) Wired Interface (Data Output) Gigabit Ethernet Voltage AC 100~240V, 50/60Hz I DC 22-24V, 5A Wireless Standard IEEE 802.11ac Battery Type Lithium Ion Polymer Battery Environment Storage :-10#C ~60°C, 10%~90% RH (Non-condensing) Operation : 10°C ~35°C, 20%-75% RH (Non-condensing) Dimensions(W x L x T) 385mm x 460mm x 15mm Weight 2.75kg including Battery Pack
