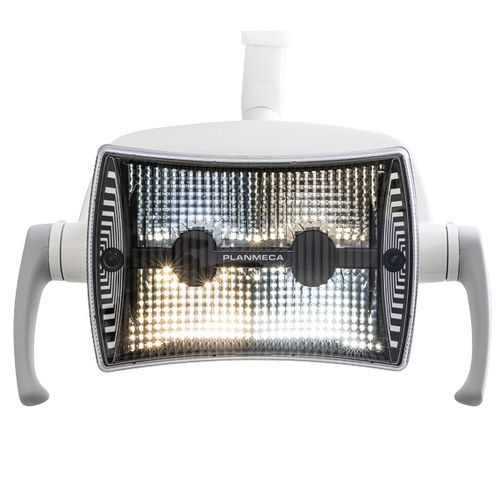

LED surgical light Solanna® Vision

dentalwith video camerawith control panel

Overview
Planmeca Solanna® Vision is a dental operating light that integrates advanced illumination with two built-in 4K cameras and microphones to provide a unified imaging and lighting solution for clinical workflows. The system enables high-resolution still images, video recording and live streaming directly within treatment procedures.

Imaging features

• Two built-in 4K cameras with different lenses for complementary fields of view (close-up and wide).
• Integrated microphones for synchronized audio capture during recordings and streams.
• Advanced exposure control that adapts to varying lighting conditions.
• Built-in stabilisation to ensure sharp, steady images and video.

Capture, streaming and documentation
Solanna Vision enables fast capture of premium-quality images and videos, recording of treatment sessions for patient education, clinical consultation or documentation, and live streaming of treatments or selected moments. All captured media are automatically stored and managed in Planmeca Romexis® software for streamlined access and documentation.

Operation and workflow

• Cameras are sealed behind a one-piece front cover for protection and simplified cleaning.
• Imaging functions can be controlled via multiple interfaces: Planmeca Romexis® software, the dental unit user interface, the operating light handle and the foot control.
• Integrated imaging eliminates the need for additional external cameras, simplifying setup and reducing equipment on the unit.

Lighting and positioning
Planmeca Solanna operating lights offer adjustable brightness and colour temperature so clinicians can tailor illumination to the procedure and personal preference. The light provides sufficient intensity for all dental procedures and offers smooth, precise movements for accurate positioning.

User benefits

• Combined imaging and lighting improves documentation, patient communication and teaching workflows.
• Fast, easy capture of high-resolution clinical images and videos without extra equipment.
• Wide and narrow fields of view cover detailed intraoral imaging and the surrounding treatment area.

Caractéristiques / spécifications techniques

• Product: Planmeca Solanna® Vision operating light with integrated imaging
• Integrated cameras: Two 4K cameras with different lenses (close-up and wide)
• Microphones: Integrated for audio capture
• Fields of view: Oral cavity (32 x 18 cm); Head and surrounding area (59 x 33 cm)
• Imaging capabilities: Still images, video recording, live streaming
• Image control: Advanced exposure control and built-in stabilisation
• Operation interfaces: Planmeca Romexis® software, dental unit UI, light handle, foot control
• Camera protection: Sealed behind a one-piece front cover
• Lighting: Adjustable brightness and colour temperature; intensity suitable for all dental procedures
• Workflow: Integrated storage to Planmeca Romexis® software for easy access and documentation
