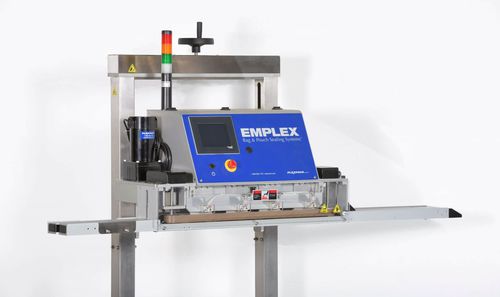

Medical packaging sealer MPS7300

automaticsemi-automaticmanual

The validatable MPS 7300 sets the standard for high speed or heavy duty medical bagging applications that require seal verification. The MPS 7300 hermetically seals bags and pouches up to 12 mil/300 micron(6 mil/150 micron when gusseted) at speeds up to 1000 inches(25.4 m) per minute and can be configured for manual, semi-automatic, or automatic loading. All bag sealing processes are digitally controlled, monitored, calibrated, verified and reported through an easy-to-use industrial PC and 5.7” touchscreen display. Sealing Features Standard Sealer Orientation Vertical or Horizontal Sealer Band Teflon Seal Throat Depth 3.5” (88 mm) Dimensions & Construction Standard Frame Construction 304 Stainless Steel frame and legs Infeed Direction - Right to Left or Left to Right Height Adjustment Crank Pressure Rollers - Stainless Steel or Rubberized Electrical 110V 12A or 220V 6A Heating and Cooling Capacity 10” (25.4 cm) heating bars 10” (25.4 cm) cooling bars Controller - Industrial PC and 5.7” Color Touchscreen Interface Single-point setting for speed, temperature, and pressure. Recipe management and selection for different materials and products. Production and user activity reporting and management tools. Multi-Language preference settings. Diagnostics and background monitoring of key processes and components to prevent machine damage or product loss. Maintenance alerts. Pictorial maintenance guides and instructional tutorials.
