Medical packaging sealer MPS6340
automaticbenchtopwith touchscreen

medical packaging sealer
medical packaging sealer
Add to favorites
Compare this product


Characteristics

Applications
for medical packaging
Operation
automatic
Configuration
benchtop
Options
continuous, with touchscreen
Seal width

3 mm, 6 mm, 10 mm, 13 mm, 19 mm
(0 in, 0 in, 0 in, 1 in, 1 in)

Sealing speed

7,620 mm/min
(5 in/s)

Sealing temperature

Max.: 200 °C
(392 °F)

Min.: 0 °C
(32 °F)

Description

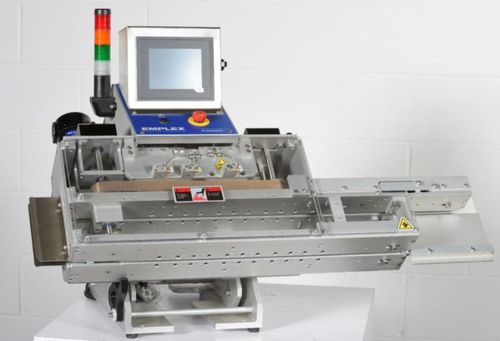

The Emplex MPS6340 delivers validatable seals for customers who require high quality bags and pouches in a compact tabletop design. The MPS6340 is a low maintenance machine with standard features not typically found on tabletop sealers. The MPS6340 hermetically seals bags and pouches up to 8 oz. (227 gm), depending on bag width and thickness. The sealing head is adjustable for optimum packaging efficiency. All bag sealing processes are digitally controlled, monitored, calibrated, verified and reported through an easy-to-use industrial PC and 5.7” touchscreen display. Sealing Feautres Standard Selaer Orientation Vertical Sealer Band Teflon Seal Throat Depth 3.5" (88 mm) Dimensions & Construction Standard Frame Construction 304 Stainless Steel frame Infeed Direction Right to Left or Left to Right Sealer Adjustment 0, 45 or 90 degrees Pressure Rollers - Stainless Steel or Rubberized Electrical 120V 12A or 220V 6A Motor 1/4HP PWM PMDC SPL 60 db Controller - Industrial PC and 5.7” Color Touchscreen Interface Single-point setting for speed, temperature, and pressure. Recipe management and selection for different materials and products. Production and user activity reporting and management tools. Multi-Language preference settings. Diagnostics and background monitoring of key processes and components to prevent machine damage or product loss. Maintenance alerts. Pictorial maintenance guides and instructional tutorials.
