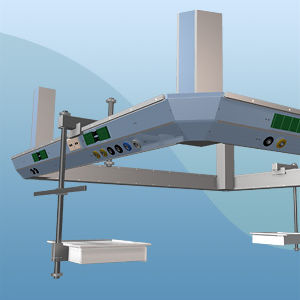

Supply beam system O
ceiling-mountedwith shelves

supply beam system
supply beam system
Add to favorites
Compare this product


supply beam system
Other characteristics
with shelves


Technical Specifications Field of Usage: Operating Theatre Basic Setup: Four-sided, prepared for laminar flow ceiling Coverage Area: up to 3.8m x 3.8m Payload: up to 75 kg per platform Accessories: Hooks, infusion system holders, additional rails, Options: movable consoles for equipment (up to 2 per side) Gas Installation: depending on customer configuration in upper compartment of bridge profile Electrical Installation: depending on customer configuration in lower compartment of bridge profile incl. low voltage equipment Standard Color: Anodized Aluminum Energy supply bridges represent an innovative alternative solution to traditional supply technology. These systems are characterised by an extremely flexible design making it possible to adapt them for a wide range of different processes and provide the essential media needed in the operating theatres or intensive care units. Outlets for supply are fitted in an aluminium profile heavy-duty channel that houses all supply cables and tubes. Instrument carriers and other modular accessories can easily be mounted if required. In operating theatre use, the energy bridge service side is strategically positioned opposite the aseptic surgical area. Since energy supply bridges provide outlets for all media, there is no need for wall connections for gas and electric current. Special instrument carriers are designed to take a whole range of instruments and equipment, keeping the floor area clear of cables and tubes and removing the danger of tripping. Energy supply bridges provide an ideal basis for improving ergonomic and hygienic procedures in operating theatres and intensive care units.
