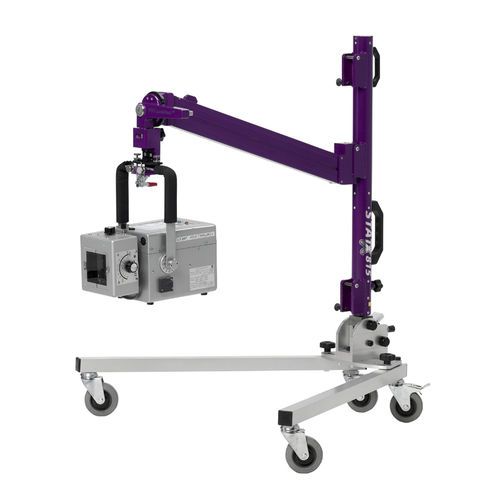

Stat-X Espléndido
With our Stat-X product line, you have the most advanced, all-purpose mobile stand that will fully satisfy your needs in your daily working environment. The Stat-X Espléndido is fitted with a revolutionary 3D-head. Your generator can be secured in fixed 12° positions with a maximum of 35° left and right. Also, check out our other Stat-X models.
Technical Specifications
Swingarm length: 750 mm
Vertical travel arm: 700 mm
Vertical travel stand: 410 mm
Max. height bracket: 195 cm
Weight portable X-ray source: 6,0 – 20,0 kg
Transport size: L 114 x W 30 x H 32 cm
Weight: 22 kg
Color: PMS260C Satin
Additional information
Stat-X options -
Regular Model (6.0 – 9.0 kg), Regular Model (9.1 – 15.0 kg), Regular Model (15.1 – 16.5kg), Short legs & extra counterweight
