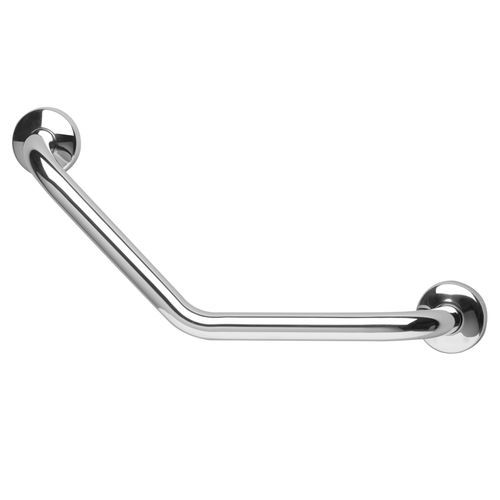

135° angle safety grab bar and fixing flanges made of stainless steel AISI 304 with polished finish. Ø 32 mm
• Body in AISI 304 stainless steel tube, thickness 1.5 mm.
• External bar diameter, 32 mm.
• Mechanically ground external finish
• Mounting flange in AISI 304 stainless steel with back-flange in polyamide
• Flange cover in AISI 304 stainless steel to conceal the screws - ø 80 mm.
• Product supplied with parts disassembled, requires assembly before installation
Materials -
Stainless steel Polished
Dimensions AxBxC(mm) - - -
555x100x275
Inter-axis dimensions A1xC1 (mm) - - -
475x195
Weight (kg) - - -
1,04
Load capacity (kg.) -
vertical -
150
