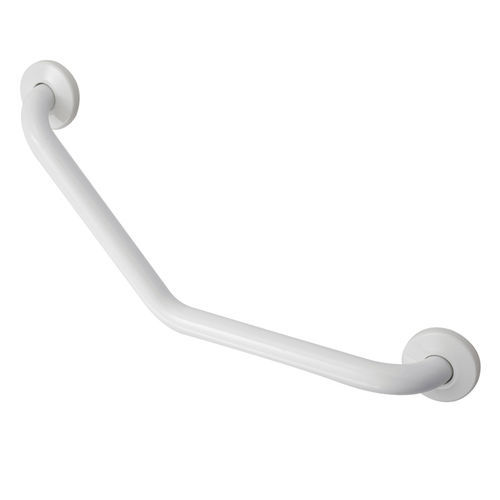

135° angle safety grab bar, Ø 32 mm, made of seamless, powder-coated steel. Fixing flanges in nylon reinforced with fiberglass.
• Body in tubular steel, thickness 1.5 mm.
• External bar diameter, 32 mm.
• Flange diameter 83 mm.
• External powder coating - 80 µm
• Mounting flange in polyamide, with glass fibre
• Flange cover in polyamide, to conceal the screws.
• Product supplied with parts disassembled, requires assembly before installation
Materials -
Steel Polished, Polyamide Polished
Dimensions AxBxC(mm) - - -
483x100x251
Inter-axis dimensions A1xC1 (mm) - - -
400x168
Weight (kg) - - -
1
Load capacity (kg.) -
vertical -
150
