Emergency trolley Neop®

hospitalmedicine distributionpatient care

Description

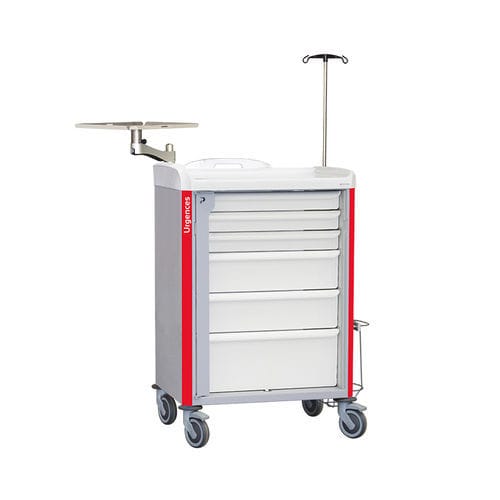

Our 600 x 400 emergency trolley with joint drawers guarantees an immediate availability of material and necessary products for first emergency needs in complete safety.
Its drawers are locked by a door wing with seal lock.

In order to access to the content of the trolley, you just have to break the seal by twisting it. After each use, the trolley is re-equipped and locked again by a numbered single-use new seal.

Technical characteristics
Work surface: ABS / PMMA thermoplastic
Complete welded and epoxy anti-corrosion treated one-piece structure
Strip of colour: 70 micron calendered PVC vinyl film with acrylic adhesive
Closing system: door wing in aluminium with epoxy painting
Locking system: seals
Wheels ø 125 mm (2 breaking + 2 swivelling), wheel and wheel-pin double blocking
Simple non marking rubber wheels (Polyamide cover)
4 non marking round stop blocks made of EVA
Empty weight: 24 kg
Dimensions: L. 745 x D. 583 x H. 1115 mm
Worktop height: 1057 mm
Useful dimensions of the worktop: L. 623 x D. 495 mm

Standard equipment

• 1 batch of 20 seals
• 1 cardiac massage board holder
• 1 cardiac massage board
• 1 monitoring holder
• 1 IV pole with 2 hooks
• 1 lateral standard rail - bottom right
• 1 oxygen tank holder
• 5 or 6 600 x 400 drawers depending on model

Additional accessories

• Partitioning kit
• Numbered seal
• Basket
• Bag holder
• Bins

Caractéristiques / spécifications techniques

• Work surface material: ABS / PMMA thermoplastic
• Structure: complete welded, one-piece, epoxy anti-corrosion treated
• Colour strip: 70 micron calendered PVC vinyl film with acrylic adhesive
• Door: aluminium door wing with epoxy painting
• Locking: single-use numbered seals
• Wheels: Ø 125 mm (2 braking + 2 swivelling) with wheel and wheel-pin double blocking; non-marking rubber wheels with polyamide cover
• Stop blocks: 4 non-marking round EVA stop blocks
• Empty weight: 24 kg
• Overall dimensions: L 745 x D 583 x H 1115 mm
• Worktop height: 1057 mm
• Useful worktop dimensions: L 623 x D 495 mm
• Drawers: available in 5 or 6 configurations depending on chosen model
