Emergency trolley Neop®

aluminumplasticwith tray

Product description

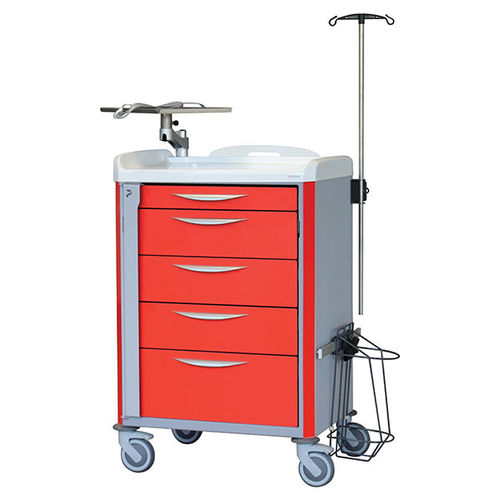

Our 600 x 400 emergency trolley with telescopic drawers provides immediate access to materials and products required for first-response interventions while ensuring controlled access. Drawers are secured behind an aluminium door wing closed with a tamper-evident seal. To access the contents, break the seal by twisting it. After each use the trolley is restocked and secured again using a new numbered single-use seal.

Models / Variants

• Basic trolley with 5 drawers
• Basic trolley with 6 drawers
• Fully equipped trolley with 5 compartmentalized drawers
• Fully equipped trolley with 5 drawers
• Fully equipped trolley with 6 drawers

Equipment — Basic trolley

• 1 batch of 20 seals
• 1 cardiac massage board holder
• 1 cardiac massage board
• 5 or 6 telescopic drawers depending on model

Equipment — Fully equipped trolley

• 1 batch of 20 seals
• 1 cardiac massage board holder
• 1 cardiac massage board
• 5 or 6 telescopic drawers depending on model
• 1 monitoring holder
• 1 IV pole with 2 hooks
• 1 lateral standard rail (bottom right)
• 1 oxygen tank holder

Marking
Marking of the trolley on request (e.g. department name, floor or facility).

Additional accessories

• Numbered seal
• Basket
• Bag holder
• Partitioning kit

Technical specifications

• Work surface: ABS / PMMA thermoplastic
• Complete welded and epoxy anti-corrosion treated one-piece structure
• Strip of colour: 70 micron calendered PVC vinyl film with acrylic adhesive
• Drawers: facade in compact laminate th. 8 mm / epoxy treated aluminium frame
• ISO trays: ABS
• Closing system: door wing in aluminium with epoxy painting
• Locking system: seals
• Wheels ø 125 mm (2 braking + 2 swivelling), wheel and wheel-pin double blocking
• Simple non-marking rubber wheels (Polyamide cover)
• 4 non-marking round stop blocks made of EVA
• Empty weight: 38 kg
• Dimensions: L. 745 x D. 583 x H. 1115 mm
• Worktop height: 1057 mm
• Useful dimensions of the worktop: L. 623 x D. 495 mm
