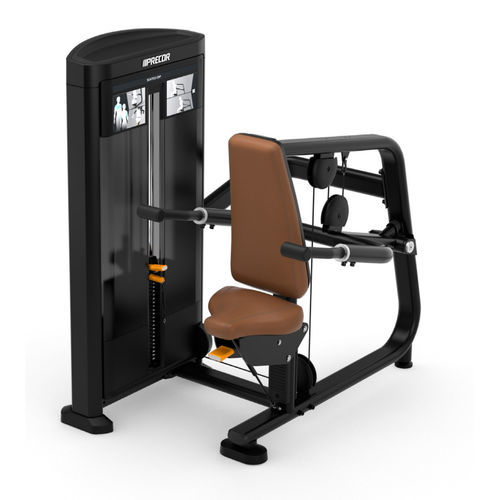

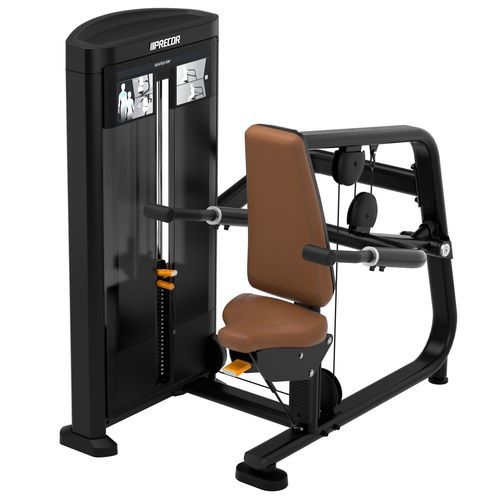

Seated dips gym station RESOLUTE™

Product description
Recreates the motion path of a bench or parallel-bar dip to target the triceps with a supported seated position.

Key features

• Pivot arms designed to match the feel of a traditional bar dip, ensuring correct engagement of the triceps; angled seat back provides support throughout the movement.
• Oversized steel tubing for structural durability; one-piece soft rubber foot caps facilitate repositioning and remain secure under impact.
• Tee-shaped, over-moulded handle grips rotate to allow multiple comfortable hand positions.

Color options
Frame: Black Pearl
Additional frame options: Flame Red • Gloss Metallic Silver • Gloss White

Upholstery
Upholstery: Black
Additional upholstery options: American Beauty • Candy Apple • Burgundy • Chocolate • All Spice • Bucksuede • Hunter Green • Blue Jay • Royal Blue • Graphite • Lite Grey • Slate

Instructional placard
Simple placard with QR code provides step-by-step setup and exercise instructions and tips for users of all levels.

Materials & construction

• Heavy-duty steel tubing welded in all structural areas; powder-coated frame for long service life.
• One-piece soft rubber foot caps for ease of movement and stability.

Upholstery material
Premium industrial vinyl with protective coating; construction includes 3/4 in (19 mm) plywood backing, 3/4 in (19 mm) high-density foam base, 3/4 in (19 mm) high-density foam core and industrial fabric cover; total thickness 65 mm (2.5 in). Fabric meets or exceeds California Bulletin 117, section E.

Technical specifications

• Model number: RSL0215
• Series / Family: Resolute
• Dimensions (L × W × H): 55 × 48 × 58 in / 140 × 122 × 147 cm
• Weight: 585 lb / 265 kg
• Weight stack: 240 lb / 109 kg
• Weight stack tower height: 58 in / 148 cm

Certifications
EN957, ASTM
