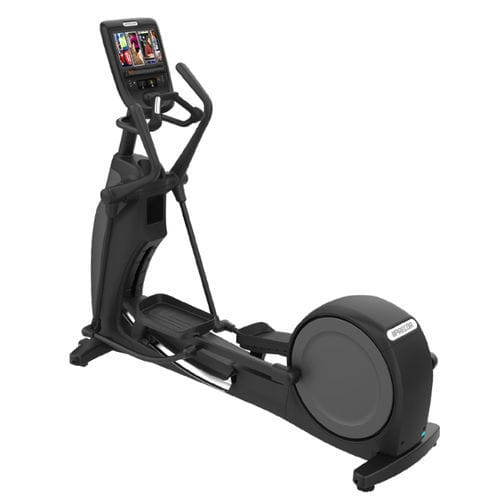

Cross trainer EFX® 865

Overview
The EFX® 865 with Converging CrossRamp® delivers a low‑impact, natural stride for commercial fitness facilities. Design improvements simplify cleaning and maintenance while the adjustable Converging CrossRamp® and moving upper‑body handlebars enable combined lower‑ and upper‑body training suitable for club and facility environments.

Key features

• Patented converging footpath design (Converging CrossRamp®) with adjustable ramp angle from 10 to 35 degrees for a natural stride.
• 20 resistance levels for a wide intensity range.
• Moving upper‑body handlebars allow push/pull motion for total‑body workouts.
• P62 console option with 10.1" capacitive touchscreen providing TV and internet options for personalised viewing.

Color options

• Frame: Black Pearl

Available console

• P62: Capacitive LCD touchscreen console offering entertainment and connectivity on a 10.1" visible screen (26 × 12 cm).

P62 console details

• Display type: LCD capacitive touchscreen.
• Visible screen size: 10.1 × 4.9 in (26 × 12 cm).
• Console languages: Danish, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish.
• Smartwatch connector: supported.
• Wi‑Fi connectivity: provided.
• Heart rate telemetry: supports chest‑strap telemetry.
• Heart rate hand sensors: handheld sensors on fixed handlebars for improved accuracy and usability.

Summary features

• Ramp angle: 10–35 degrees.
• Total workouts: 22.
• Resistance levels: 20.

Resources
Product brochure (PDF) and product documentation available for warranty, service and installation support.

Technical specifications

• Model name: EFX® 865.
• Category: Ellipticals (commercial).
• Dimensions (L × W × H): 80 × 28 × 72 in / 203 × 71 × 183 cm.
• Unit selection: Metric or U.S. Standard.
• Weight (machine): 340 lb / 154 kg.
• Max user weight: 350 lb / 159 kg.
• Frame color: Black Pearl.
• Resistance: 20 levels.
• Ramp angle: 10–35 degrees.
• Available console: P62 (LCD capacitive touchscreen).
• P62 visible screen size: 10.1 × 4.9 in / 26 × 12 cm.
• P62 console languages: Danish, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish.
• Smartwatch connector: supported.
• Wi‑Fi connectivity: provided.
• Heart rate telemetry: equipped for chest‑strap telemetry; heart rate features are for reference only and may not be accurate for every user or at all speeds.
• Heart rate hand sensors: located on fixed handlebars to improve accuracy for many users.
• Motion controls (console mapping): elliptical — incline and resistance controls.
• Power requirements: 120V/15A (US & Canada) or 240V (International).
• Cable management: optional.
