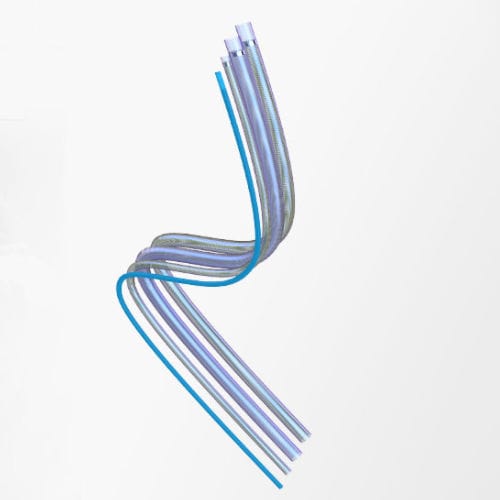

Angiography tubing

stainless steelPTFEstraight

Coiled sheath is intended to establish working channel for a variety of minimally invasive procedures. The stainless-steel coild reinforcement is designed to enhance the stability, strength, kink resistance and pushability performance. Application -Angiography catheters -Electrophysiology catheters -Delivery catheters -Stent catheters -Steering mechanism assemblies -PTA/PTCA guiding catheters -High- pressure injection lines -Kink resistant sheaths Features 01 Outstanding kink resistant sheath with stainless steel coil reinforcement for complex and tortuous anatomy 02 High column strength sheath designed for stent delivery system, occludes and other devices 03 The ultra-smooth liner facilitates the placement of instruments 04 Excellent steerablity with 1:1 torque at the proximal and distal ends 05 Super trackability with radiopaque band maker to facilitates the placement of the sheath tip under X-ray Specification Outer Diameter 2F-30F Single Wall Thickness0.005"(0.13mm) - 0.038"(0.97mm) Outer LayerNylon, Pebax and custom blends LinerPebax, PTFE, Radiopaque blends, custom liners Wire Material304 Stainless Steel Wire PatternMax. PPI 250 Wire SizeFlat: 0.0005" x 0.003"-0.002" x 0.007” / Round: 0.001” - 0.004" Tensile StrengthAs specification by customer Value-added CapabilitiesThermal tip stem bonding/ Insert molding/ Tip bonding/ Drilling
