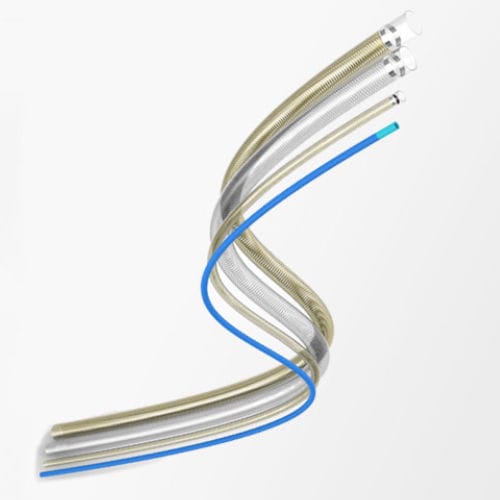

Vascular access sheath

steerable

Description
Braided introducer sheath designed to establish a stable working channel for a variety of minimally invasive cardiovascular and endovascular procedures. The stainless-steel braided reinforcement improves kink resistance, column strength, pushability and 1:1 torque transmission for precise device delivery.

Application

• Angiography catheters
• Electrophysiology catheters
• Delivery systems for stents and occluders
• PTA/PTCA guiding catheters
• Steering mechanism assemblies
• High-pressure injection lines
• Kink-resistant introducer sheaths for tortuous anatomy

Features

• Stainless-steel braid reinforcement for outstanding kink resistance in complex anatomies
• High column strength suitable for stent delivery systems and occluders
• Ultra-smooth liner to facilitate instrument passage and reduce friction
• 1:1 torque response between proximal and distal ends for precise steerability
• Radiopaque band marker to assist accurate sheath-tip placement under X-ray

Specification
Outer Diameter: 2F-30F
Single Wall Thickness: 0.005" (0.13mm) - 0.038" (0.97mm)
Max. Length: 2600mm
Outer Layer: Nylon, Pebax and custom blends
Liner: Pebax, PTFE, Radiopaque blends, custom liners
Wire Material: 304 Stainless Steel
Wire Pattern: Max. PPI 250
Wire Size: Flat: 0.0005" x 0.003" - 0.002" x 0.007" / Round: 0.001" - 0.004"
Tensile Strength: As specified by customer
Braided Patterns: Regular Braid Pattern / Diamond Braid Pattern / Half Load
Value-added Capabilities: Thermal tip/stem bonding / Insert molding / Tip bonding / Drilling
