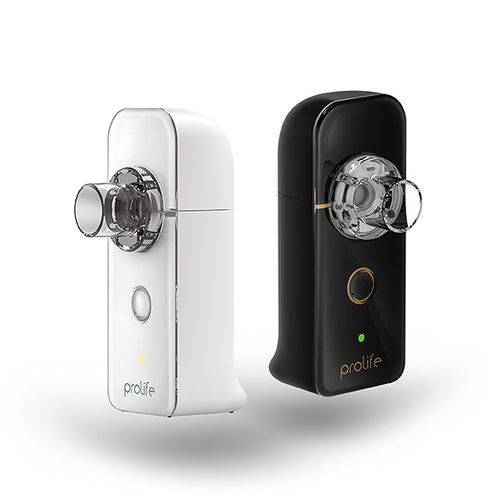

Vibrating mesh nebulizer PN

pediatricfor general purposesfor respiratory

Overview
In clinical management of respiratory conditions, the Prolife PN Mesh mesh nebulizer delivers aerosol therapy using a vibrating mesh membrane that preserves drug integrity. With an MMAD of 3.6 µm and a 6 ml medicine cup, it is intended for indications such as emphysema, chronic bronchitis and other lower respiratory tract disorders.

Key benefits

• Mesh technology preserves formulation integrity during nebulization
• Three nebulization rates (low/standard/high) to adapt to pediatric and adult therapies
• Compact, lightweight and portable
• Very low noise for treatment during sleep
• Multiple power options: mains (USB), batteries or power bank

Description
The device provides three selectable nebulization rates: high to shorten treatment time, standard for routine therapy and low for gradual inhalation in pediatric patients. The unit operates via USB (mains or power bank) or AA batteries and features a USB-Type C connector. Its quiet operation and compact size facilitate administration in outpatient, home-care and ambulatory settings.

Technical table
Type: Mesh nebulizer
Model: PN Mesh
Particle size, MMAD: 3.6 µm
Capacity of medicine cup: 6 ml
Nebulization rate: Default 0.35 – 0.50 ml/min; Low 0.24 – 0.40 ml/min; High 0.42 – 0.70 ml/min
Auto Turn-off when out of medication: Auto-off after 15 sec when medication runs out
Display Element: LED green/orange
Dimensions (L x W x H): 66х44х112 mm
Weight (without accessories): 90 g
Complete set: Nebulizer, mouthpiece, children mask, adult mask, USB-Type C cable (150 cm), 2 AA batteries (optional), instruction manual, warranty card, Prolife case

Characteristics / technical specifications

• Technology: mesh
• Particle size (MMAD): 3.6 µm
• Medicine cup capacity: 6 ml
• Nebulization rates: Low 0.24–0.40 ml/min; Default 0.35–0.50 ml/min; High 0.42–0.70 ml/min
• Auto-off: ~15 seconds after medication runs out
• Display: LED (green/orange)
• Dimensions: 66 x 44 x 112 mm
• Weight: 90 g (without accessories)
• Power options: mains (USB), batteries, power bank
• Included accessories: mouthpiece, children mask, adult mask, USB-Type C cable (150 cm), optional 2 AA batteries, instruction manual, warranty card, Prolife case
