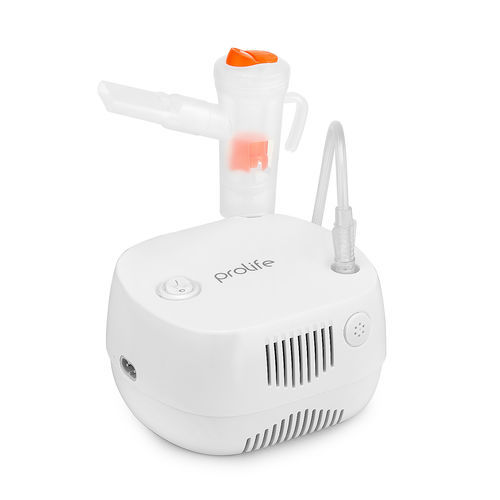

Pneumatic nebulizer PN Family

pediatricfor general purposesfor respiratory

Advantages

• Two inhalation modes covering both upper and lower respiratory tract therapies
• Adjustable nebulization rate for comfortable inhalation, suitable for children
• Low noise level: 51.5 dBA
• High-power compressor for efficient aerosol generation
• Extended-length air tube (1.5 m) for greater mobility
• 5-year warranty

Description
Prolife PN Family is a family-oriented compressor nebulizer designed for home inhalation therapy. It provides reliable nebulization performance with two selectable spray modes to target different regions of the respiratory tract and to adapt treatment speed to patient needs.

Modes

• Slow mode — MMAD 1.65 µm; nebulization rate 0.17 ml/min. Optimized for lower respiratory tract deposition (e.g., bronchitis, asthma, pneumonia); suitable for pediatric use due to finer particles and slower rate.
• Fast mode — MMAD 2.5 µm; nebulization rate 0.4 ml/min. Produces larger particles for effective treatment of upper respiratory tract conditions (e.g., tracheitis, rhinitis, sinusitis, laryngitis); higher rate reduces therapy time.

Technical table
Type — Compressor nebulizer
Model — Prolife PN Family with nebulizer kit Prolife PNB
Particle size, MMAD — 1.65 / 2.5 µm
Noise level — 51.5 dBA
Capacity of medicine cup — 8 ml
Nebulization rate — 0.17 / 0.4 ml/min
Mode of operation — Intermittent use (30 min ON / 30 min OFF)
Maximum pressure — 241 kPa – 400 kPa
Dimensions (L x W x H) — 162 x 140 x 94 mm
Weight (without accessories) — 1340 g

Specifications

• Type: Compressor nebulizer
• Model: Prolife PN Family with nebulizer kit Prolife PNB
• Particle size (MMAD): 1.65 µm (Slow) / 2.5 µm (Fast)
• Nebulization rate: 0.17 ml/min (Slow) / 0.4 ml/min (Fast)
• Noise level: 51.5 dBA
• Capacity of medicine cup: 8 ml
• Mode of operation: Intermittent use (30 min ON / 30 min OFF)
• Maximum pressure: 241–400 kPa
• Dimensions (L x W x H): 162 x 140 x 94 mm
• Weight (without accessories): 1340 g
• Air tube length: 1.5 m (extended-length)
• Warranty period: 5 years

Complete set

• Compressor (main unit)
• Nebulizer kit
• Air tube (1.5 m)
• Mouthpiece
• Nosepiece
• Children mask
• Adult mask
• 5 replaceable filters
• Power cable
• Instruction manual
• Warranty card
• Prolife bag
