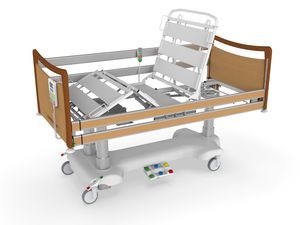

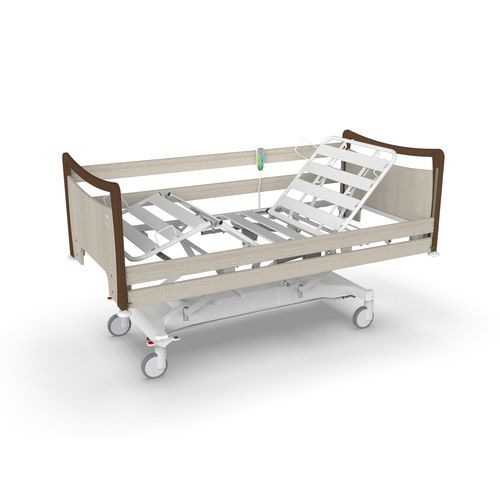

Nursing home bed SALVATOR

hospitalelectricfolding

Overview
SALVATOR electric care beds are specially designed for standard nursing care, especially for patients with reduced mobility or those who require assistance with daily activities. The bed offers electric positioning, folding side rails and an intuitive colour-coded hand control to support caregivers and enhance patient autonomy.

Product advantages / Highlights

• Electric lifting of the mattress platform: Wide lifting range reduces caregiver strain and facilitates patient handling. Reduced minimum height supports safer patient transfers.
• Mattress platform width: Optimal platform width provides patient comfort while enabling efficient handling of the bed.
• Increased load capacity: Robust construction with a safe operating load up to 250 kg for repeated use under higher loads.
• Comfortable positioning: Electric adjustment of back and thigh sections with mechanical calf section; extensive adjustment options via hand control.
• Patient control (optional): Ergonomic patient handset available for basic function control.
• Foldable side rails: Two-stage folding side rails reduce the risk of accidental lowering and fold below mattress level to facilitate patient egress.
• CPR function: Quick-release CPR lever for rapid positioning of the back section to facilitate immediate cardiopulmonary resuscitation.
• Double autoregression: Reduces abdominal pressure, increases comfort and lowers the risk of pressure injuries.
• Mattress platform extension: Optional extension for taller patients to improve comfort and handling.
• Choice of bedheads: Two design types available in multiple decor options to suit the care environment.
• Colour and design options: Selection of finishes to create a welcoming patient environment.
• Castors TENTE: All PROMA REHA beds equipped with TENTE castors.
• Bed linen shelf: Pull-out shelf useful for linen changes and to protect nurse control from damage or unauthorized use.
• Central brake: Centrally operated brake for safe handling; option to lock one wheel for single-person transport.
• Mattress holders: Keep the mattress in optimal position during platform adjustments.
• Universal accessory holders: Two holders at the headboard and two at the footboard for accessories (lifting pole, IV pole, monitor holder, additional side rails, bedside lamp, extension kit).
• Bumper wheels: Located at four corners to assist during transport.
• Plastic chassis cover: Facilitates cleaning and protects mechanisms and electronics to extend service life.
• Horizontal accessories holder: Standardised stainless steel euro rail with three universal plastic hooks on both sides of the bed.

Downloads / Documents
English product documentation available (see product PDF for full technical details).

Technical specifications

• Mattress platform (length x width): 200 x 85 (90) cm
• Outer bed dimensions with bumper wheels (length x width): 206 (207) cm x 98 (103) cm
• Mattress platform height: 39.5 - 78.5 cm
• Autoregression back part: 12 cm
• Autoregression thigh part: 6 cm
• Mattress platform extension: 20 cm (optional)
• Weight of the bed: 118 kg
• Safe operating load of the bed: 250 kg
• Maximum patient weight: 215 kg
• R-Ray back part: Yes
• CPR back part: Yes
• Application environment for bed use: 3, 4
• Mattress platform parts - metal slats: Yes
• Type of bedheads - UNI P, UNI K: Yes (optional)
• Type of side rails: Removable
• Trendelenburg / Antitrendelenburg: 15° / 14° (mechanical)
• Max. angles of adjustable sections - back part: 70°
• Max. angles of adjustable sections - thigh part: 40°
• Max. angles of adjustable sections - calf part: 25° (rastomat)
• Bed equipment: Castors - Plastic, metal (optional); Bumper wheels - Yes (optional); Central brake - Yes (optional); Horizontal accessory holder - Yes 2x (optional); Plastic hook - Yes 6x (optional); Plastic chassis cover - Yes (optional); Universal accessory holder - Yes 4x; Bed linen shelf - Yes (optional); Patient control - Yes; Backup battery - Yes (optional); Fixation of bedheads - Yes
• Recommended mattress (length x width): 200 x 90 (85) cm
• Recommended mattress thickness in normal use: 14 cm
• Recommended minimal mattress size (thickness): 12 cm
• Recommended maximal mattress size (thickness): 22 cm
• Electrical parameters: Operating voltage 100-240V AC; Power supply frequency 50/60 Hz; Applied part TYPE B; Protection IP54
