Infusion bottle holder Z2N09072

storagealuminumstainless steel

Product

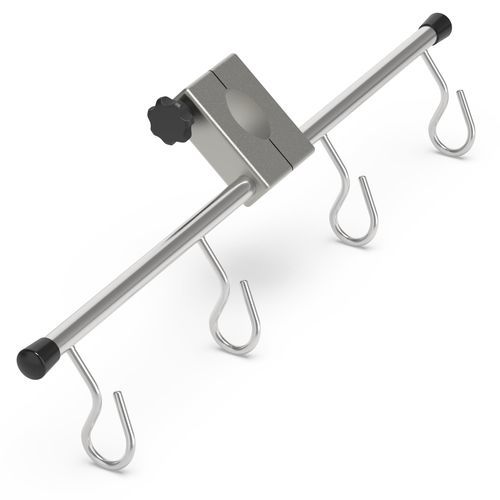

Infusion bottle holder for bed lifting pole

Subtitle
Attachment for oval tube 28 x 40 mm (Ø 28 mm)

Advantages

• Flexible positioning – mounts directly on the oval tube and can be adjusted in orientation.
• Quick assembly – easy to attach and remove with minimal effort.
• Stable attachment – secure grip on the oval tube (28 x 40 mm) without wobble or slipping.
• Ergonomic – keeps infusion bottles close to the patient to facilitate care and monitoring.

Product details
Field of application: Bed lifting pole
Material: Stainless steel / Aluminium
For attachment to: Oval tube 28 x 40 mm
Type of fixation: For screwing on
Number of hooks: 4
Arrangement of the hooks: In line with each other
Length: 490 mm
Safety notice: The total load capacity depends on the end device!
Total load capacity (kg): 8
Load capacity per system (kg): 2
Load capacity per hook (kg): 2

Technical specifications

• Field of application: Bed lifting pole
• Material: Stainless steel / Aluminium
• Attachment: for oval tube 28 x 40 mm
• Fixation: for screwing on
• Hooks: 4, arranged in line
• Length: 490 mm
• Total load capacity: 8 kg (depends on end device)
• Load capacity per system: 2 kg
• Load capacity per hook: 2 kg
