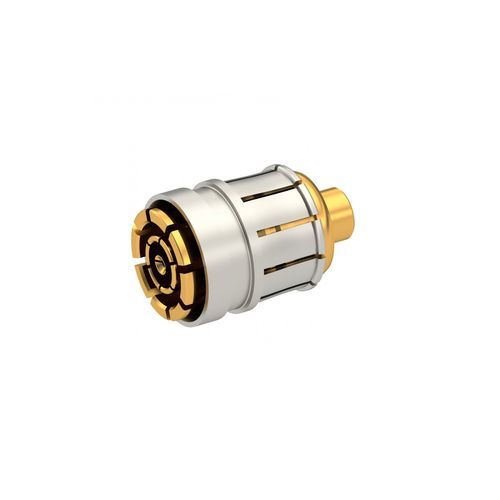

Medical device connector SMPM-LOCK

malecoaxialcompact

<b>Product Overview</b><br>The SMPM-LOCK by Radiall™ is a micro‑miniature SMPM connector designed for reliable RF interconnects up to 65 GHz. It combines a compact footprint with a robust locking mechanism to increase retention force and prevent accidental disconnection. A right‑angle plug version is available for space‑constrained assemblies.<br><br><b>Features</b><br><ul><li>Impedance: 50 Ω</li><li>Frequency range: DC – 65 GHz</li><li>IP67 sealing option</li><li>Robust locking system to prevent accidental disconnection</li></ul><br><b>Dimensions</b><br><ul><li>Outer diameter: 5.2 mm</li><li>Length: 8.5 mm</li></ul><br><b>Resources</b><br>SMPM-LOCK by Radiall™ Handout (PDF)<br>Video: SMPM-LOCK by Radiall™<br><br><b>Technical specifications</b><br><ul><li>Impedance: 50 Ω</li><li>Frequency range: DC – 65 GHz</li><li>Electrical performance up to 65 GHz</li><li>IP67 sealing option available</li><li>Robust locking mechanism to increase retention force and prevent accidental disconnection</li><li>Micro‑miniature form factor, optimized for tight spaces (including right‑angle plug version)</li><li>Outer diameter: 5.2 mm</li><li>Length: 8.5 mm</li></ul>
