Data connector Co250CAN

waterproofelectric

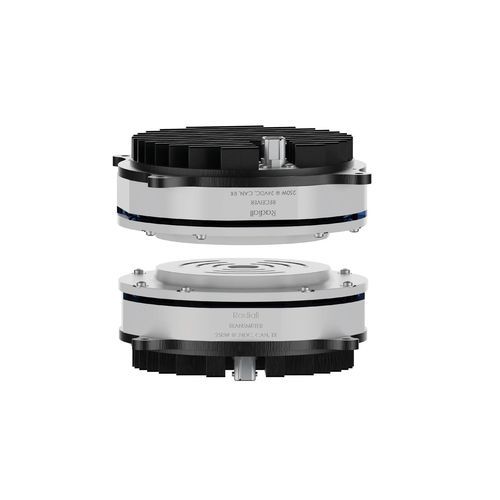

<b>Product overview</b><br>Radiall's Co250CAN is a contactless power and data connector enabling continuous power transfer up to 250 W and CAN-protocol communication across air gaps up to 15 mm. It is intended for applications requiring unlimited 360° rotation and minimal mechanical maintenance.<br><br><b>Key features</b><br><ul><li>Contactless power and data transfer</li><li>Continuous power rating: up to 250 W</li><li>CAN protocol communication</li><li>1 Mbps bidirectional data rate</li><li>Maximum air gap: 15 mm</li><li>Misalignment tolerance: ±5 mm</li><li>360° unlimited rotation</li><li>Contactless operation to eliminate mechanical wear; enhanced sealing for demanding environments</li></ul><br><b>Resources</b><br><ul><li>Co250CAN Contactless Connectors User Guide (document)</li><li>Co250CAN Contactless Connectors Handout (document)</li><li>Contactless Connector Co250CAN (video)</li></ul><br><b>Technical specifications</b><br><ul><li>Continuous power rating: 250 W</li><li>Data rate: 1 Mbps (bidirectional)</li><li>Protocol: CAN</li><li>Maximum air gap: 15 mm</li><li>Misalignment tolerance: ±5 mm</li><li>Rotation: full 360° unlimited rotation</li><li>Mechanical: contactless operation for zero wear</li><li>Environmental: enhanced sealing for demanding environments</li></ul>
