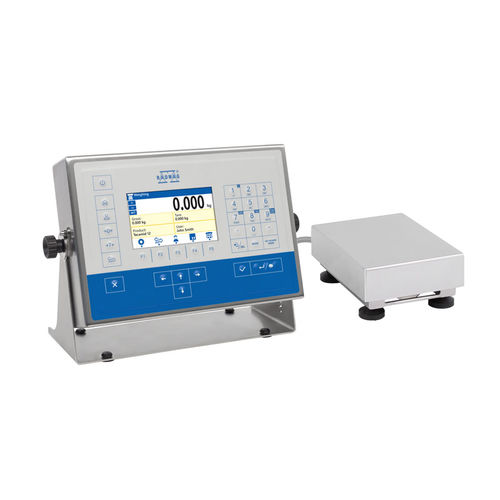

Electronic platform scale HX5.EX-1 H series - ATEX
with mobile displaywith graphic display

electronic platform scale
electronic platform scale
electronic platform scale
electronic platform scale
Add to favorites
Compare this product


Characteristics

Technology
electronic
Display type
with mobile display, with graphic display
Weighing capacity

Min.: 1.5 kg (3.31 lb)

Max.: 300 kg (661.39 lb)

Readability

Min.: 0.5 g (0.0176 oz)

Max.: 100 g (3.5274 oz)

Description

The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used. The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements. Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive. More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.
