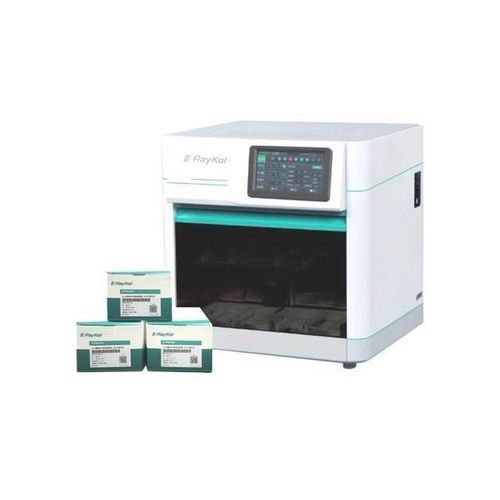

Automated sample preparation system AutoBio series

for sample preparationbiologicalfor DNA extraction

Product overview
AutoBio-16P and AutoBio-32P are automated sample preparation systems for biological products designed to perform nucleic acid extraction for residual/exogenous host cell DNA detection. AutoBio-16P processes 1–16 samples per run; AutoBio-32P processes 1–32 samples per run. Units combine compact footprint, straightforward operation and optional battery power, and are optimized for rapid, reproducible sample purification when used with RayKol Residual Host Cell DNA Detection Kits.

Features of Biological Products QC Solution

• Intelligent
  • User-friendly software with preset sequences for RayKol kits and a designed observation window for process monitoring.
• Safe
  • Built-in filter safety hood with UV lamp to reduce cross-contamination risk during sample processing.
• Portable
  • Space-saving footprint and support for external storage battery; low power consumption; optional cellphone app control for remote operation.
• Validated
  • Designed to support validation workflows for analytical methods adapted to residual exogenous DNA detection.
• Traceable
  • Comprehensive run logging stored in software to meet GMP documentation requirements (≥2000 sequences storage).
• Professional
  • Pre-set sequences and compatibility with RayKol Residual Host Cell DNA Kits for biological product testing.

Kits included / available
Name | Unit Size | Cat No.
Residual DNA Preparation Kit | 50T/100T | 0120-001-001/002
CHO Residual DNA Detection Kit (qPCR) | 100T | 8006-001-001
E.coli Residual DNA Detection Kit (qPCR) | 100T | 8006-002-001
Pichia pastoris Residual DNA Detection Kit (qPCR) | 100T | 8006-003-001
Vero Residual DNA Detection Kit (qPCR) | 100T | 8006-004-001
Human Residual DNA Detection Kit (qPCR) | 100T | 8006-005-001
293T Residual DNA Detection Kit (qPCR) | 100T | 8006-006-001

Specifications (summary)
See technical specifications block below for detailed parameters of AutoBio-16P and AutoBio-32P.

Notes
System is intended to be used with RayKol residual host cell DNA kits; software supports logging and preset sequences for kits.

caractéristiques / spécifications techniques

• Model (16P): AutoBio-16P
• Through-put (16P): 1-16 samples / run
• Work range (16P): 20-1000 μL
• Lysis temperature (16P): room temperature - 120°C
• Wash temperature (16P): room temperature - 120°C
• Temperature accuracy (16P): ±1 °C
• Shaking speed (16P): Multi shaking modes; 10 speed modes
• Position CV (Between wells) (16P): CV ≤ 3%
• Extraction recovery (16P): 70% - 130%
• Magnetic beads recovery (16P): >95%
• Logging data (16P): ≥ 2000 sequences
• Interfaces (16P): USB port, Ethernet port, Wifi connection
• Barcode scanning (16P): Extra bar-code scanner (optional)
• Power supply (16P): DC 24V/5A, available for extra storage battery
• Dimension (16P): 20 cm × 26 cm × 30 cm
• Weight (16P): 7 kg
• Model (32P): AutoBio-32P
• Through-put (32P): 1-32 samples / run
• Work range (32P): 30-1000 μL
• Lysis temperature (32P): room temperature - 120°C
• Wash temperature (32P): room temperature - 120°C
• Temperature accuracy (32P): ±0.5 °C
• Shaking speed (32P): Multi shaking modes; 10 speed modes
• Position CV (Between wells) (32P): CV ≤ 5%
• Extraction recovery (32P): 70% - 130%
• Magnetic beads recovery (32P): >95%
• Logging data (32P): ≥ 2000 sequences
• Interfaces (32P): USB port, Ethernet port, Wi-fi connection
• Barcode scanning (32P): Extra bar-code scanner (optional)
• Power supply (32P): DC 24V/5A, available for extra storage battery
• Dimension (32P): 417 cm × 410 cm × 426 cm
• Weight (32P): 20 kg
