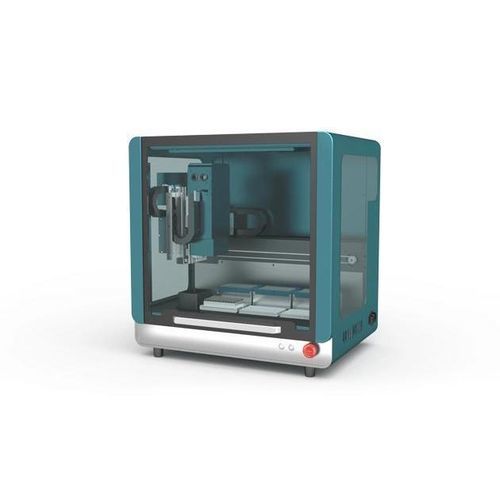

Liquid handling pipetting robot Vitae 60

for clinical laboratoriesfor cherry pickingfor PCR

Product overview
Vitae 60 is a compact automated workstation for PCR preparation and general liquid handling. Designed for constrained environments such as temporary laboratories, mobile inspection vehicles and limited bench space, it supports routine PCR set-up, cell‑based assays and other liquid handling workflows. The system accepts third‑party consumables including centrifuge tubes, reagent vials, 96/384 SBS plates and deep‑well plates, reducing adapter constraints and improving process consistency.

Applications

• PCR setup for molecular diagnostics (virus detection, pathogen screening)
• Sample preparation in mobile or temporary laboratories
• Repetitive liquid handling tasks in microbiology and research labs

Key features
Flexible configurations

• 6‑position layout compatible with tube sizes from 0.2 mL to 50 mL and SBS 96/384 plates or custom labware
• Modular hardware with optional heating, cooling and shaking modules
• Diverse adaptors for compatibility with third‑party reagents and labware

Simplified software interface

• Graphical drag‑and‑drop protocol editor for quick sequence setup
• Independent parameter settings per step with flexible timing and volumes
• Multiple liquid handling modes: one‑to‑one, one‑to‑multiple, plate replication, cherry‑pick
• Adjustable dispense and aspiration speeds

Cost efficient design

• Compatibility with third‑party consumables to lower operating cost
• Intuitive software to reduce training time
• Modular components to simplify maintenance and reduce downtime

Specifications

• Configuration: 4/8 channel air‑pump control pipettes (single‑channel function included)
• Work range: 1–250 µL; 5–1000 µL
• Accuracy: 200–1000 µL CV ≤ 0.5%; 20–200 µL CV ≤ 1%; 5–20 µL CV ≤ 2%; 1–5 µL CV ≤ 5%
• Dimensions (L×W×H): 750 × 560 × 730 mm
• Weight: 60 kg
• Compatible consumables: 96/384 SBS plates, centrifuge tubes (0.2–50 mL), deep‑well plates and various third‑party labware
• Optional modules: heating, cooling, shaking; modular hardware and flexible liquid handling modes
