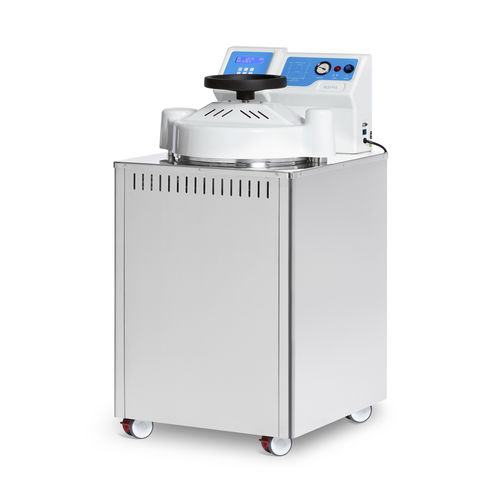

Laboratory autoclave AES Series

laboratory autoclave
laboratory autoclave
laboratory autoclave
laboratory autoclave
laboratory autoclave
Add to favorites
Compare this product


Application domain
laboratory, microbiology
vertical, floor-standing, compact, mobile
programmable, microprocessor-controlled, semi-automatic, electric
Sterilization chamber material
stainless steel

Min.: 15 l (4 gal)

Max.: 175 l (46.2 gal)

Temperature range

Min.: 100 °C (212 °F)

Max.: 134 °C (273.2 °F)


1,110 mm, 1,185 mm, 1,290 mm, 1,400 mm, 1,435 mm (43.7 in)


580 mm, 700 mm, 820 mm (23 in)


AES Series Vertical laboratory autoclaves without drying from 33 to 175L. Economic autoclaves to meet the fundamental sterilization needs of a general laboratory, optimized for an easy operation, they include multiple safety features to protect users in their daily routine. Applications: Industry, educational, medical and research facilities with the aim of increasing laboratory productivity. Indications: Sterilization of a wide range of liquid and solid materials, such as laboratory waste bags, culture medium, glassware, plastics, metal equipment and other laboratory items. Features: Sterilization chamber made of AISI-316L stainless steel. Exterior cabinet made of AISI-304 stainless steel. Steam generation through electrical resistances. Control by PID microprocessor, with 10 programs, programmable by time, temperature and cycle type (solid or liquid). LCD screen showing sterilization parameters, alerts and errors. Manual steam release push-button. Manual drain valve. Manual filling of the sterilization chamber with water. Protecting grid for the heater element. Cycle time range: 1-250 minutes. Agar mode 40 to 80ºC. Heart probe optional. Optional inlet in chamber for an external validation probe. Programmable auto-start (24 h). Connection to PC with optional control software. Optional integrated or external printers. Benefit from 50 years of experience in the manufacture of laboratory autoclaves for multiple applications. RAYPA offers you several autoclave options ranging from state-of-the-art autoclaves for research professionals to compact and smaller autoclaves for general installations. Request more information about the AES Series now or download our brochure.
