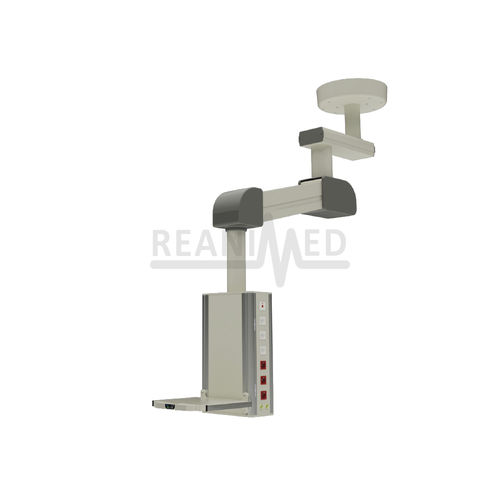

Double medical pendant PND-KAL-M02-2K

ceiling-mountedanesthesiaintensive care

Thanks to its versatile mobility and ergonomic design, it provides ease of use and access to medical gas, electricity, data and other equipment in areas where patient intervention is required such as operating rooms, intensive care rooms and emergency services. TECHNICIAL SPECIFICATIONS Arm Lengths: 600+600 / 800+800 / 800+1000 / 1000+1000 mm Total Carrying Capacity: 180 kg (±5%) Medical Gas Sockets and Equipment: In DIN / BS / NF Standards, the number and type are determined according to the needs in the usage areas. Electrical Sockets and Equipment: In DIN / BS / NF Standards, the number and type are determined according to the needs in the usage areas. Carrier Shelf: 350x350 mm - Carrying Capacity 60 kg (±5%) Special production can be made according to demand. Accessory Rail: 30x10x350 mm (±10%) 2 pieces. - Carrying Capacity 10 kg (±5%) Brake and Engine Control Panel: Membrane Button, Engine and Brake Control Panel Brake Type : Pneumatic / Mechanical Rotation Limit: Rotational Rotation Limit is 330° C in Both Directions. Lifting Speed and Lifting Height: Maximum 700mm height adjustment is available. Lifting speed is approximately 20 seconds on all Motor Pendants. Material : Aluminum Extrusion Profile Product Color: RAL 9002 / RAL 9010 / RAL 7035 Operating Values: Energy Supply: 220V - 50 Hz. Temperature Values: +10°C / +40 °C Quality Standards: 93/42 EEC, 2007/42/EC, EN ISO 13485:2016, EN ISO 9001:2015, EN ISO 11197:2020, EN 60601-1:2009, EN 60601-1-2:2011, EN ISO 7396-1:2016, EN ISO 7396-2:2013, EN ISO 15223-1:2016, EN ISO 9170-1:2020, EN 1041+A1:2014, EN ISO 14971 :2020, IEC 62366-1:2015 Packaging Information Amb. Type : Stretch+Foam - Amb. Weight: 9000 gr.
