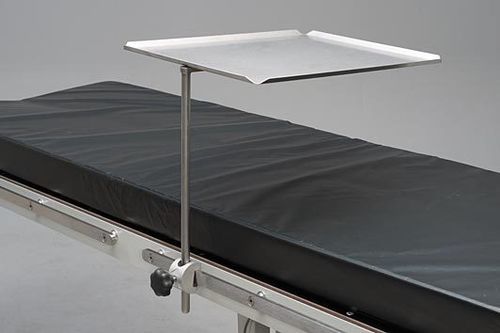

Table-mounted instrument table 10-060

stainless steel

Overview
This surgical instrument table is designed to provide efficient organization and quick accessibility of surgical instruments and supplies during procedures. The table is made of stainless steel for ease of cleaning and long service life in clinical environments.

Functionality

• The instrument table 10-060 is the simplest of Reison's models: it can be raised, lowered and rotated laterally.

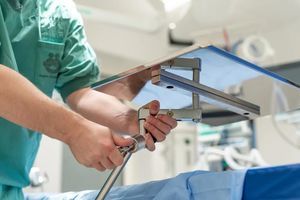

• With a rotatable clamp the table plate can be adjusted to remain horizontal when the operating table is tilted in Trendelenburg or Anti-Trendelenburg positions.
• Note: if the operating table is tilted laterally the instrument table cannot be positioned horizontally.
• Clamps are sold separately and are not included with the product.

Accessories / Recommended clamps

• 10-301
• 10-301-US
• 10-301-UK
• 10-302
• 10-304
• 10-305
• 10-305-US
• 10-305-UK
• 10-308

Specifications

• Part Number EU: 10-060
• Length: 500 mm
• Width: 400 mm
• Height: 730 mm
• Diameter: 16 mm
• Weight: 2.9 kg
• SWL (Safe Working Load): 2.5 kg
• Material: Stainless steel
