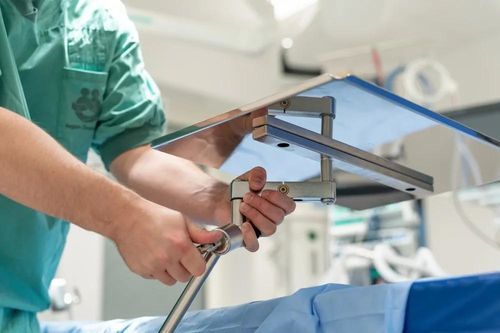

Table-mounted instrument table 10-066

stainless steel

Rotatable and flexible instrument table providing easy access to equipment and instruments throughout the operation. The adjustable tabletop is designed for versatile positioning and to remain horizontal even when the operating table is tilted.

Key features

• Adjustable tabletop mounted on a ball joint allowing a flat surface regardless of operating table position.
• Two-point linkage system enables versatile positioning and multi-directional movement.
• Designed for attachment to the operating table using a rotating clamp (rotating clamp not included).
• When used with a rotatable clamp, the tabletop can be set to remain horizontal in Trendelenburg and Anti‑Trendelenburg positions.
• Ball joint permits use of simpler quick-release clamps; clamps ordered separately.

Accessories (recommended)

• Recommended clamps: 10-301, 10-301-US, 10-301-UK, 10-302, 10-304, 10-305, 10-305-US, 10-305-UK, 10-308

Technical specifications

• Part Number EU: 10-066
• Length: 540 mm
• Width: 400 mm
• Height: 730 mm
• Weight: 4.5 kg
• SWL: 10 kg in even distribution, according to EN 60601-1 and EN 60601-2
• Material: Stainless steel
