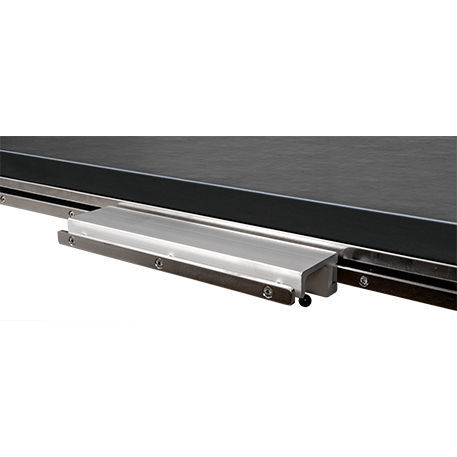

Operating table width extension system 10-425

Product description
Reison’s widening section is designed to increase the width of the back and seat sections of the operating table, offering improved support and space for larger patients or procedures requiring additional room. It is especially suited to bariatric surgery and interventions that require extra equipment or access.
Mounting is performed on the table side rails; the unit is compatible with most standard operating tables equipped with EU 25×10 mm rails, providing straightforward attachment and removal.

Accessories

• Available with or without mattress: 10-425: Widening 105 x 300 mm (EU 25×10 mm rail), pair, incl. mattress
• 10-425-S: Widening 105 x 300 mm (EU 25×10 mm rail), pair, excl. mattress
• Recommended cushion: 11206 Mattress, height 60 mm (included in 10-425)

Specifications
Part Number EU: 10-425
Length: 300 mm
Width: 125 mm
Height: 150 mm
Weight: 2.9 kg
SWL (Safe Working Load): 50 kg
Material: Stainless steel, Aluminium

Technical specifications

• Part Number EU: 10-425
• Length: 300 mm
• Width: 125 mm
• Height: 150 mm
• Weight: 2.9 kg
• SWL (Safe Working Load): 50 kg
• Material: Stainless steel, Aluminium
