Operating table width extension system 10-422

Product description

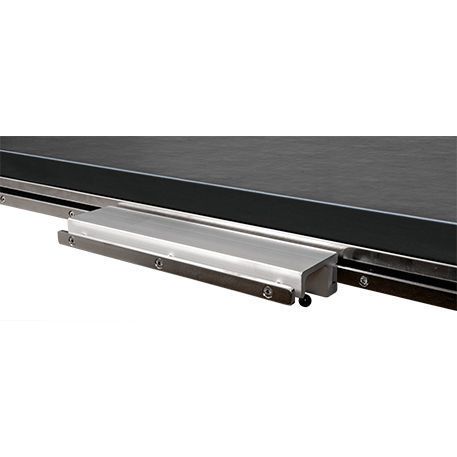

The widening section model 10-422 is a pair of side-mounted extensions for operating tables designed to increase the width of the back and seat sections. Intended for bariatric patients and procedures requiring additional lateral space, it improves support and provides extra clearance for surgical access and auxiliary equipment. The units mount to EU 25×10 mm side rails and are compatible with most standard operating tables.

Accessories

• 10-422: Widening 105 x 455 mm (EU 25×10 mm rail), pair, includes mattress
• 10-422-S: Widening 105 x 455 mm (EU 25×10 mm rail), pair, without mattress
• Recommended cushions: 10710, mattress height 60 mm (included with 10-422)
• 10710-80, mattress height 80 mm

Documents
User manuals available in TR, SE, PL, NO, NL, IT, FR, FI, ES, EN, DK, DE.

Technical specifications

• Part Number EU: 10-422
• Length: 540 mm
• Width: 125 mm
• Height: 150 mm
• Weight: 4.3 kg
• SWL: 50 kg
• Material: Stainless steel, aluminium
