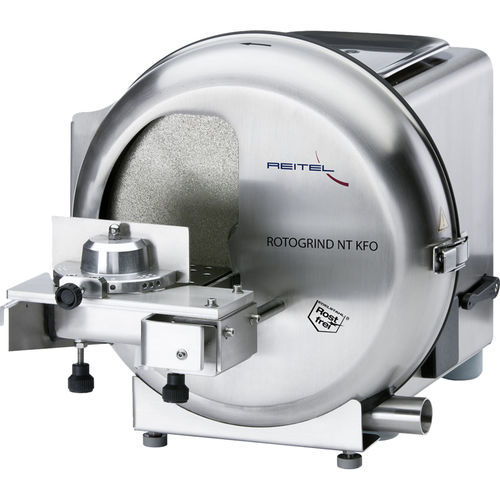

Plaster trimmer with diamond disc ROTOGRIND NT KFO

for orthodontics

Description
The ROTOGRIND NT KFO Set is an orthodontic model trimmer designed for precise angulation and contouring of maxillary and mandibular models. A mounted slider facilitates exact positioning and the combination of smooth axial movement with lateral end-stop adjustment allows use of the full grinding disc surface. The orthodontic table can be swung aside when not required. A laser guide is available as an optional accessory for repeatable model alignment.

Applications

• Trimming and angulation of plaster and foam orthodontic models (maxilla and mandible)
• Dental laboratories and orthodontic practices
• Controlled contouring where full disc usage is required

Technical features

• Variable angle adjustment with locking positions
• Smooth axial movement for precise trimming
• Lateral adjustment of the end stop to use full grinding disc surface
• Orthodontic table swing-away design for flexible workspace use
• Extra-large grinding disc opening for clear access
• Housing: stainless steel

Specifications

• Product: Trimmer with orthodontic angulation table, incl. fully coated diamond grinding disc
• Grinding disc diameter: 280 mm
• Rated power: 1,500 W
• Speed: 3,000 rpm
• Supply voltage: 230 V / 50-60 Hz
• Overall dimensions (H/W/D): 350 / 350 / 470 mm
• Stand footprint (W/D): 200 / 250 mm
• Weight: 22 kg

Options & Accessories

• Optional line laser for model positioning
• Optional adjustable LED light
• Full-diamond grinding disc KFO (28 cm)
• REITEL spray 250 ml (single and 12-pack)

Ordering information

• Order number: 43305000
