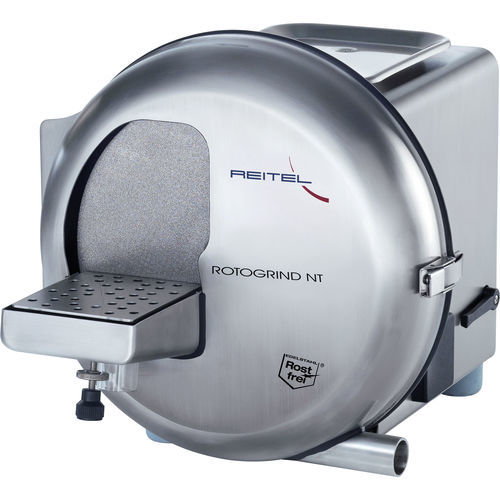

Dry plaster trimmer ROTOGRIND NT

wetwith diamond disc

Description The ROTOGRIND NT plaster trimmer is designed for dental laboratories and offers convertible wet and dry operation with a silent brushless motor that ensures concentric disc rotation. The patented wet rinsing system continuously cleans the disc, preventing clogging even after dry use and enabling stable trimming of models that are not fully hardened. The stainless steel housing and quick-release hinged front cover allow easy internal cleaning and maintenance. The angle-adjustable work table can be fixed at any position for precise trimming.

Technical features

• Patented disc cleaning with continuous wet rinsing
• Hinged, removable front cover with quick-release
• Automatic motor stop and brake when opening the housing
• Continuous water flow control
• Overload relay and restart protection after power failure
• Brushless silent motor

Accessories (examples)

• REITEL-Spray 12 x 250 ml
• REITEL-Spray 250 ml
• Diamond grinding disc DELTA
• Diamond-coated PW disc
• Fully diamond-bonded medium grit disc
• Aluminium support for corundum
• Velcro corundum disc
• Positioning laser

Technical specifications

• Line voltage: 230 V / 50-60 Hz
• Power consumption: 1,500 W
• Dimensions (H/W/D): 350 / 350 / 470 mm
• Footprint (W/D): 200 / 250 mm
• Weight: 22 kg
• Speed: 3,000 rpm
• Disc diameter: 250 mm
• Housing material: stainless steel
• Order number: 10301000
