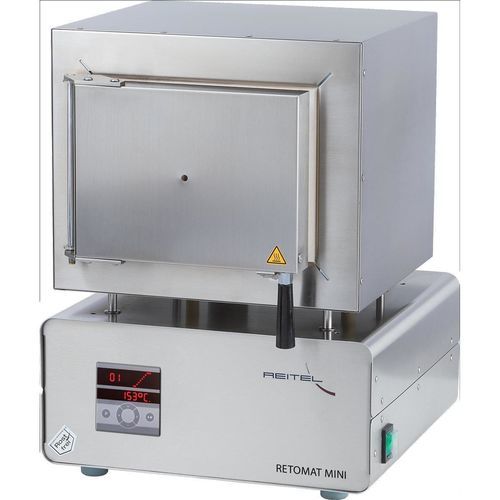

Thermal oven RETOMAT MINI COMFORT

castingpouringholding

Description
The RETOMAT MINI COMFORT is a laboratory furnace designed for precious-metal and model casting applications. It is built for precise thermal cycles and uniform temperature distribution in small-volume production and laboratory environments. The unit is available with two control options: the COMFORT controller for programmable heating and holding ramps, and the EASY controller for simple temperature hold functionality.

Technical features

• Four-sided heating spiral for even temperature distribution
• Maximum temperature: 1,150 °C
• Heating rate: up to 15 °C/min
• Chamber volume: 3.2 L (RETOMAT MINI); variant listed: 4.5 L
• Stainless steel housing with upward-opening furnace door
• Digital display, error indication and door contact switch
• Automatic start programming; date and remaining time display
• Programming languages: English and German
• Line voltage: 230 V / 50-60 Hz — Power consumption: 2,500 W
• Weight: 32 kg

Specifications

• Model: RETOMAT MINI COMFORT
• Programs: 30 programs with 4 ramps each plus a speed program; freely selectable
• Controller options: COMFORT (heating and holding steps) or EASY (temperature hold)
• Heating chamber examples (H/W/D): 115 / 180 / 220 mm and 120 / 165 / 160 mm
• Overall dimensions (H/W/D): 540+40 / 390 / 440+200 mm
• Volume examples: 3.2 L (standard), 4.5 L (variant)
• Order number (example): 17404001

Options & accessories

• Ventilation fan adapter
• Optional catalytic converter for reduction of odours and smoke by catalytic afterburning of furnace gases
• Optional extractor fan to reduce odour and smoke emissions

Applications & benefits for industry use

• Ideal for small-scale precious-metal casting, modelmaking and laboratory sintering tasks
• Programmable profiles enable reproducible thermal cycles and quality control
• Compact footprint and stainless housing suitable for lab and bench-top integration
