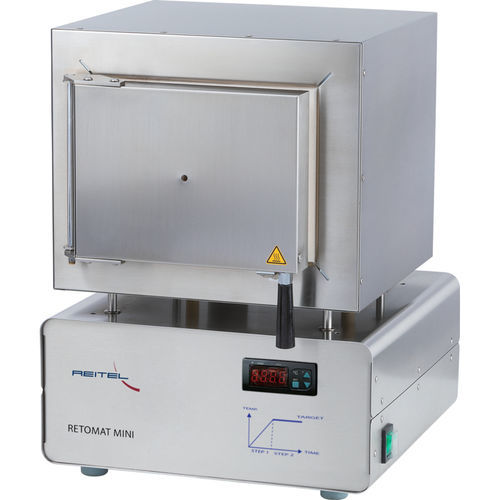

Casting furnace RETOMAT MINI EASY

holdingpreheatingheating

Description
The RETOMAT MINI EASY laboratory furnace is intended for precious-metal and model casting applications. It offers a compact working volume and selectable control options to match workshop requirements. The unit integrates a four-sided heating spiral and high-performance insulation to ensure uniform temperature distribution up to a maximum of 1,150 °C.

Key features

• Working volume: 4.5 l
• Four-sided heating spiral with heating rate up to 15 °C / min
• Maximum temperature: 1,150 °C
• Controller options: EASY (maintains set temperature) or COMFORT (programmable with heating and holding steps; 30 programs, 4 ramps, plus speed program)
• Ventilation fan adapter; optional extractor fan
• Optional catalytic afterburner to reduce odours and smoke
• Upward-opening stainless steel furnace door
• Stainless steel housing
• Digital display of actual and set temperatures
• Line voltage: 230 V / 50-60 Hz — Power consumption: 2,500 W
• Order number: 17404000

Technical specifications

• Model series: RETOMAT (RETOMAT MINI EASY)
• Chamber / heating room (H/W/D): 115 / 180 / 220 mm
• Overall dimensions (H/W/D): 540+40 / 390 / 440+200 mm
• Volume: 4.5 l
• Maximum temperature: 1,150 °C
• Heating rate: up to 15 °C / min
• Heating system: four-sided heating spiral
• Controller: EASY or COMFORT (programmable)
• Ventilation: fan adapter; optional extractor fan
• Optional: catalytic afterburner
• Housing material: stainless steel
• Electrical supply: 230 V / 50-60 Hz — 2,500 W
• Weight: 32 kg
• Order number: 17404000
