Cooling system 23807000

Description

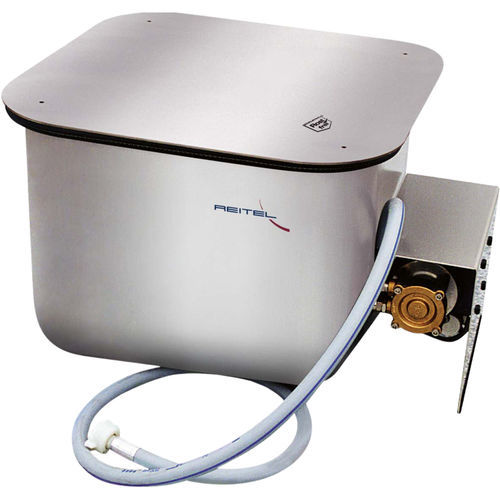

Compact closed-circuit water cooling unit designed for induction casting machines. A pump circulates coolant from a 40 l reservoir to prevent overheating, reduce water consumption and enable independent operation from laboratory supply. Suitable for integration with various industrial cooling circuits; stainless-steel housing and compact footprint facilitate installation.

Technical features

• Supply voltage: 230 V/50–60 Hz
• Power consumption: 150 W
• Dimensions (H/W/D): 350/450/580 mm
• Reservoir volume: 40 l
• Weight: 12 kg
• Max. pump flow: 10 l/min
• Sound pressure level: ≤ 70 dB(A)
• Housing material: stainless steel
• Order number: 23807000

Characteristics / specifications

• Closed-loop cooling for induction casting machines
• Reduces water consumption and prevents overheating
• Universal use for other cooling circuit applications
• Compact stainless-steel housing for industrial environments
• 40 l reservoir and pump delivering up to 10 l/min
